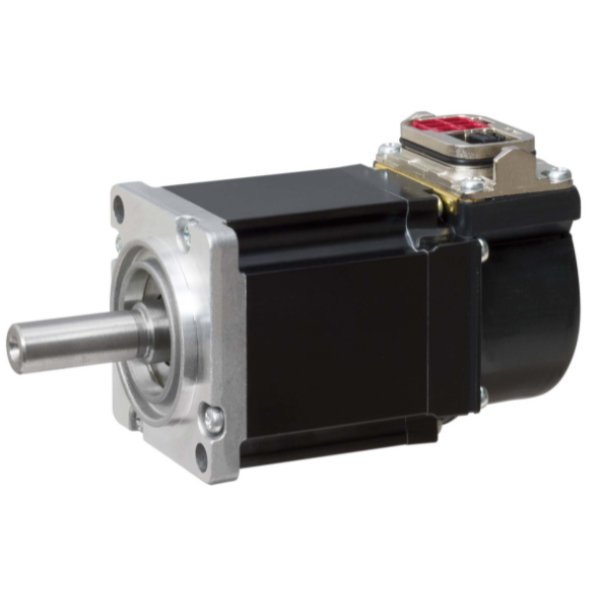

Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481630
Product Details: Servomotr; HK-KT Series; Power 1/2 kW; Torque 6,4 Nm; 200/400V
SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-KT
RATED CAPACITY (KW) 1/2
RATED TORQUE (NM) 6,4
MAXIMUM TORQUE (NM) 25,5
RATED SPEED (RPM) 1500/3000
MAXIMUM SPEED (RPM) 2500/5000
INERTIA (KG*CM2) 5,65
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 90
HEIGHT (MM) 106,6
DEPTH (MM) 176,9
WEIGHT (KG) 4,4
ORDER CODES
EUROPEAN ORDER CODE 481630
GLOBAL ORDER CODE 0GD022
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30230
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 4.982 KG
VOLUME 13.943 CDM
LENGTH 32,5 CM
WIDTH 19,5 CM
HEIGHT 22 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
