Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481631

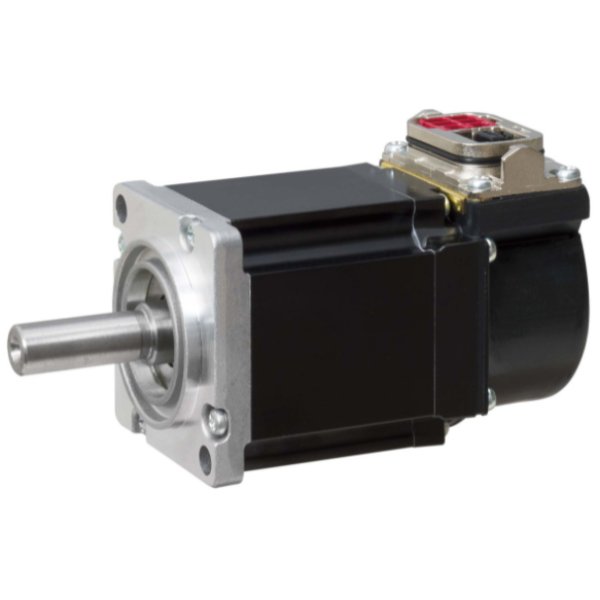

Product Details: Servomotr; HK-KT Series; Power 1/2 kW; Torque 9,5 Nm; 200/400V
SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-KT
RATED CAPACITY (KW) 1/2
RATED TORQUE (NM) 9,5
MAXIMUM TORQUE (NM) 38,2
RATED SPEED (RPM) 1000/2000
MAXIMUM SPEED (RPM) 1500/3000
INERTIA (KG*CM2) 8,18
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 90
HEIGHT (MM) 106,6
DEPTH (MM) 212,9
WEIGHT (KG) 5,9
ORDER CODES
EUROPEAN ORDER CODE 481631
GLOBAL ORDER CODE 0GD023
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30230
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 6.515 KG
VOLUME 14.04 CDM
LENGTH 19,5 CM
WIDTH 32 CM
HEIGHT 22,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
