Type: ANALOG INPUT
Series: MELSEC-Q SERIES
Serial Number:

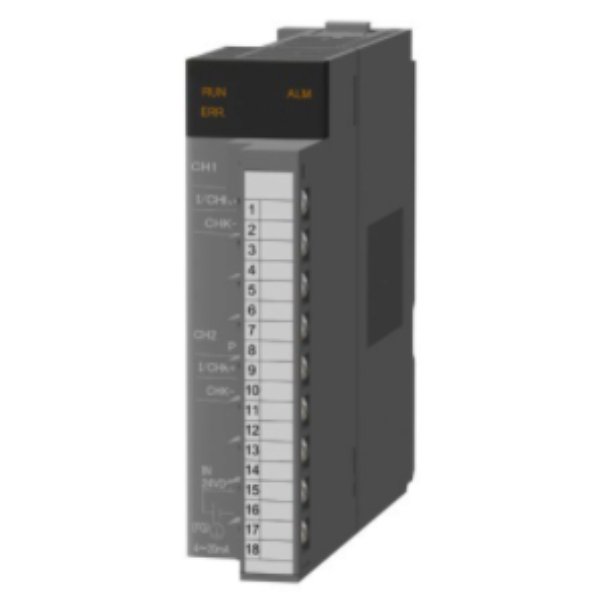

Product Details: PLC Q Series 2 channel analog input module, high-resolution, galvanic isolated
ANALOGUE I/O MODULE
SERIES MELSEC-Q SERIES
TYPE ANALOG INPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED I/O POINTS ON PLC 16
INTEGRATED ANALOGUE INPUTS 2
INPUT CURRENT RANGE (MA) 4-20
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,22
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,4
HEIGHT (MM) 98
DEPTH (MM) 112
WEIGHT (KG) 0,19
ORDER CODES
EUROPEAN ORDER CODE 145036
GLOBAL ORDER CODE 1W4570
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Analogue I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.259 KG
VOLUME 1.785 CDM
LENGTH 17 CM
WIDTH 15 CM
HEIGHT 7 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
