Type: TM-RU2M
Series: MELSERVO-J4, MELSERVO-J5
Serial Number: 340504

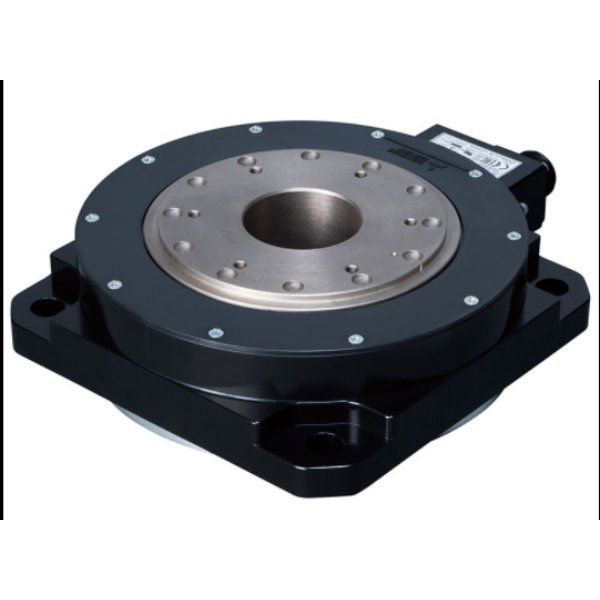

Product Details: Direct Drive Motor TM Serie, Power 69 W; Torque 2,2 Nm, max. 8,8 Nm, Table
SERVO MOTOR
SERIES MELSERVO-J4, MELSERVO-J5
TYPE TM-RU2M
RATED CAPACITY (KW) 0,069
RATED TORQUE (NM) 2,2
MAXIMUM TORQUE (NM) 8,8
RATED SPEED (RPM) 300
MAXIMUM SPEED (RPM) 600
INERTIA (KG*CM2) 7,88
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP40
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 2097152
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 177
DEPTH (MM) 56
WEIGHT (KG) 2,7
ORDER CODES
EUROPEAN ORDER CODE 340504
GLOBAL ORDER CODE 0HM033
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30217
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 10.89 KG
VOLUME 0 CDM
LENGTH 0 CM
WIDTH 0 CM
HEIGHT 0 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
