Type: TM-RFM
Series: MELSERVO-J4, MELSERVO-J5
Serial Number: 232907

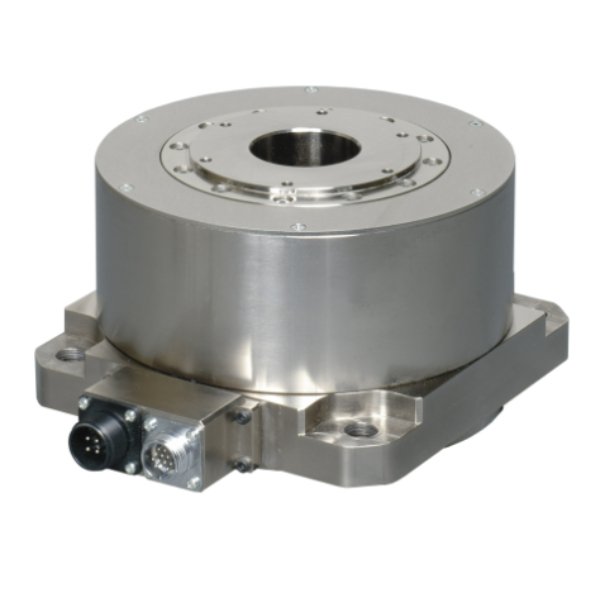

Product Details: Direct Drive Motor TM Serie, Power 2513 W; Torque 240 Nm, Torque 720 Nm
SERVO MOTOR
SERIES MELSERVO-J4, MELSERVO-J5
TYPE TM-RFM
RATED CAPACITY (KW) 2513
RATED TORQUE (NM) 240
MAXIMUM TORQUE (NM) 720
RATED SPEED (RPM) 100
MAXIMUM SPEED (RPM) 200
INERTIA (KG*CM2) 6303
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP42
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 1048576
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 330
HEIGHT (MM) 419,8
DEPTH (MM) 278,5
WEIGHT (KG) 146
ORDER CODES
EUROPEAN ORDER CODE 232907
GLOBAL ORDER CODE 0HM012
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30217
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 149 KG
VOLUME 193.44 CDM
LENGTH 60 CM
WIDTH 52 CM
HEIGHT 62 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
