Type: TM-RFM
Series: MELSERVO-J4, MELSERVO-J5
Serial Number: 232900

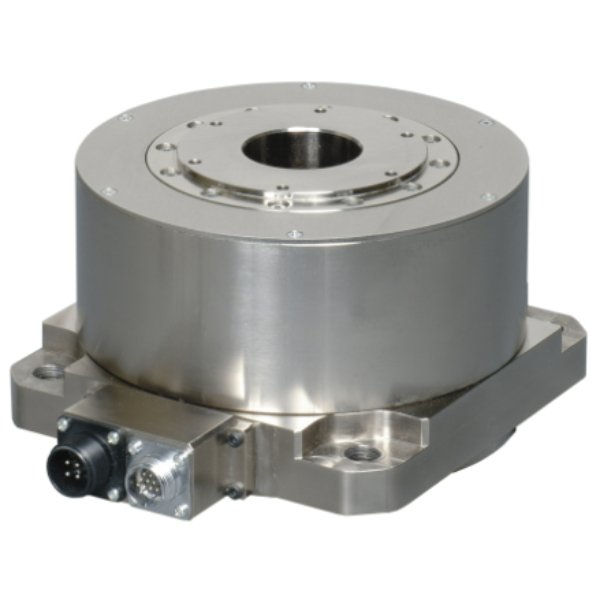

Product Details: Direct Drive Motor TM Serie, Power 251 W; Torque 12 Nm, Torque 36 Nm
SERVO MOTOR
SERIES MELSERVO-J4, MELSERVO-J5
TYPE TM-RFM
RATED CAPACITY (KW) 0,251
RATED TORQUE (NM) 12
MAXIMUM TORQUE (NM) 36
RATED SPEED (RPM) 200
MAXIMUM SPEED (RPM) 500
INERTIA (KG*CM2) 111
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP42
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 1048576
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 180
HEIGHT (MM) 231,9
DEPTH (MM) 88
WEIGHT (KG) 15
ORDER CODES
EUROPEAN ORDER CODE 232900
GLOBAL ORDER CODE 0HM005
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30217
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 14.359 KG
VOLUME 24.817 CDM
LENGTH 41,5 CM
WIDTH 26 CM
HEIGHT 23 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
