Type: TM-RFM
Series: MELSERVO-J4, MELSERVO-J5
Serial Number: 232898

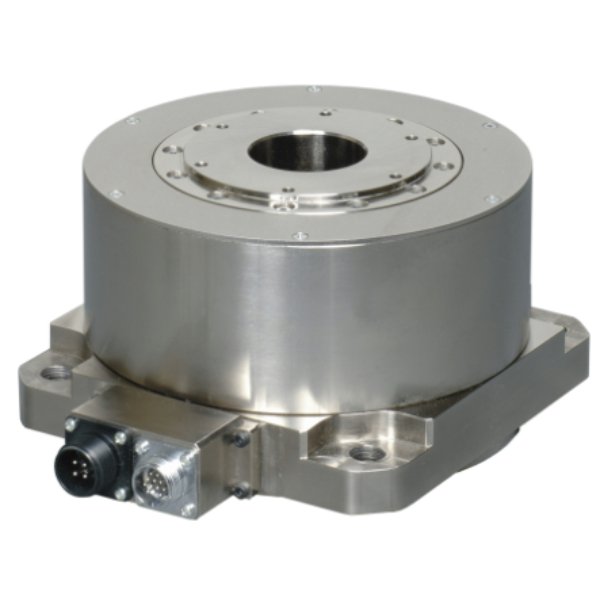

Product Details: Direct Drive Motor TM Serie, Power 126 W; Torque 6 Nm, Torque 18 Nm
SERVO MOTOR
SERIES MELSERVO-J4, MELSERVO-J5
TYPE TM-RFM
RATED CAPACITY (KW) 0,126
RATED TORQUE (NM) 6
MAXIMUM TORQUE (NM) 18
RATED SPEED (RPM) 200
MAXIMUM SPEED (RPM) 500
INERTIA (KG*CM2) 22,4
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP42
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 1048576
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 181,9
DEPTH (MM) 97,5
WEIGHT (KG) 8,4
ORDER CODES
EUROPEAN ORDER CODE 232898
GLOBAL ORDER CODE 0HM003
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30217
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 8.75 KG
VOLUME 15.975 CDM
LENGTH 35,5 CM
WIDTH 22,5 CM
HEIGHT 20 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
