Type: TM-RFM
Series: MELSERVO-J4, MELSERVO-J5
Serial Number: 232896

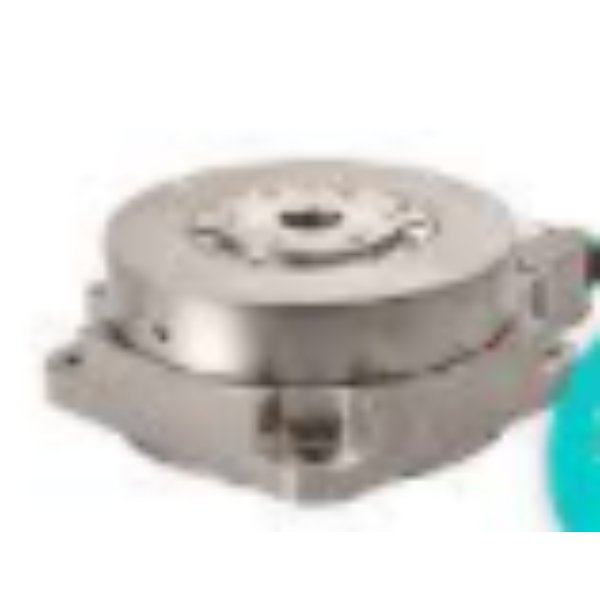

Product Details: Direct Drive Motor TM Serie, Power 42 W; Torque 2 Nm, Torque 6 Nm
SERVO MOTOR
SERIES MELSERVO-J4, MELSERVO-J5
TYPE TM-RFM
RATED CAPACITY (KW) 0,042
RATED TORQUE (NM) 2
MAXIMUM TORQUE (NM) 6
RATED SPEED (RPM) 200
MAXIMUM SPEED (RPM) 500
INERTIA (KG*CM2) 10,9
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP42
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 1048576
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 181,9
DEPTH (MM) 63,5
WEIGHT (KG) 5,2
ORDER CODES
EUROPEAN ORDER CODE 232896
GLOBAL ORDER CODE 0HM001
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30217
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 5.648 KG
VOLUME 16.905 CDM
LENGTH 35 CM
WIDTH 23 CM
HEIGHT 21 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
