Type: ANALOG OUTPUT
Series: ST SERIES
Serial Number:

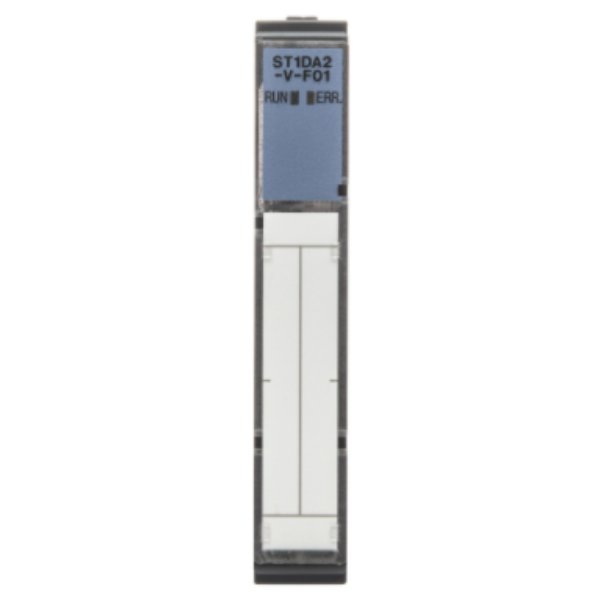

Product Details: ST Series Analog output module, 2 Outputs enabled, Voltage
ANALOGUE I/O MODULE
SERIES ST SERIES
TYPE ANALOG OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 2
INTEGRATED ANALOGUE OUTPUTS 2
OUTPUT VOLTAGE RANGE (V) -10-10; 0-10; 0-5; 1-5
WIRING SPRING/SCREW CLAMP
INT. CURRENT CONSUMPTION (A) 0,095
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 12,6
HEIGHT (MM) 77,6
DEPTH (MM) 55,4
WEIGHT (KG) 0,04
ORDER CODES
EUROPEAN ORDER CODE 217631
GLOBAL ORDER CODE 1WP510
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50303
CLASS DESCRIPTION FA-MOD PLC: Analogue I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.045 KG
VOLUME 0.082 CDM
LENGTH 6 CM
WIDTH 8 CM
HEIGHT 1,7 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371098
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 152975 ST1DA2-V
SUCCESSOR 473231 NZ2FTS-60DA4
SUCCESSOR INFORMATION 0
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
80-05-7
2451-62-9
12060-00-3
DANGEROUS GOODS REGULATIONS NO
