Type: AC CONTACTOR
Series:
Serial Number: 279206

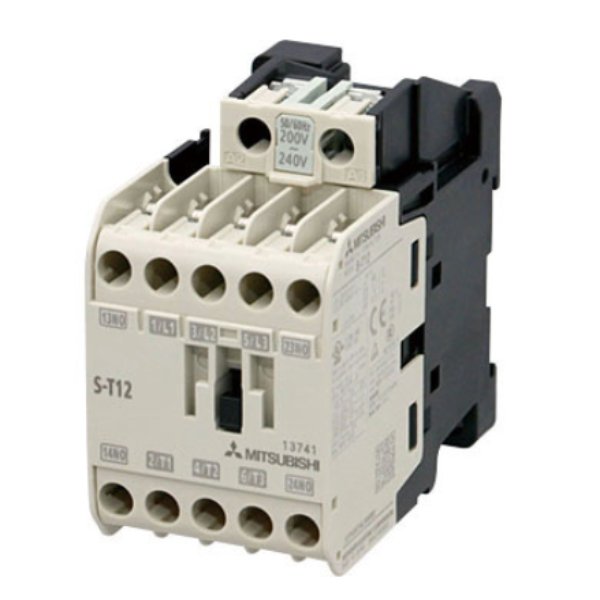

Product Details: S-T12 AC100V 1A1B
Magnetic contactor. 5,5kW; 1NO + 1NC; Us = AC 100V, 50Hz
Description
Magnetic contactor – Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.) – Mitsubishi Electric (MS-T series) – 3-poles (3P) – Rated current 12A (380Vac / 400Vac / 415Vac / 440Vac; AC-3) – Rated power 5.5kW (440Vac; AC-3; IEC) / 7.5HP (7-1/2HP) (440-480Vac; 3-phase; UL) – Control coil voltage 100Vac-127Vac (50Hz/60Hz) (110Vac / 120Vac) – with 1NO+1NC aux. contacts – Screw-clamp connections with finger protection – DIN rail / Surface mounting – 43mm width – equivalent to S-T12AC100V
S-T12AC100V1A1B
