Type: HIGH-SPEED TRANSISTOR OUTPUT
Series: MELSEC IQ-R SERIES
Serial Number:

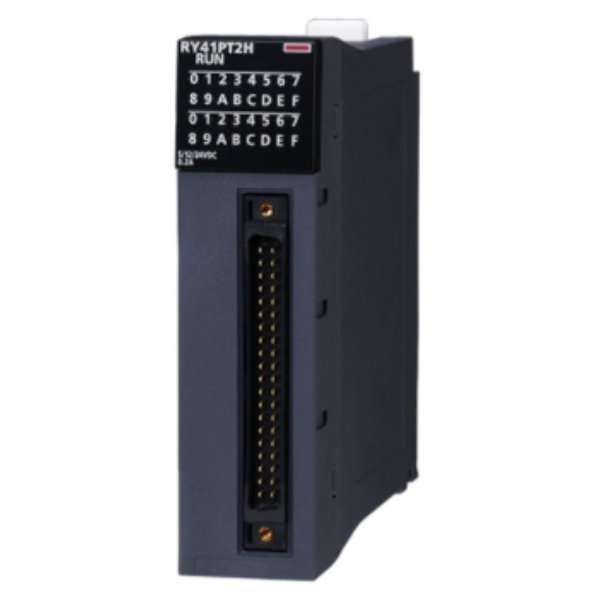

Product Details: PLC iQ-R Series; Transistor (source) output module, high speed
DIGITAL OUTPUT MODULE
SERIES MELSEC IQ-R SERIES
TYPE HIGH-SPEED TRANSISTOR OUTPUT
OCCUPIED I/O POINTS ON PLC 32
INTEGRATED DIGITAL OUTPUTS 32
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
RATED LOAD VOLTAGE (VDC) 5/12/24
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,41
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,8
HEIGHT (MM) 98 (106)
DEPTH (MM) 131
WEIGHT (KG) 0,12
ORDER CODES
EUROPEAN ORDER CODE 304547
GLOBAL ORDER CODE 1FM159
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD51401
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.193 KG
VOLUME 1.2 CDM
LENGTH 16 CM
WIDTH 5 CM
HEIGHT 15 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
