Type: VERTICAL
Series: RV-F SERIES BIG CAPACITY ROBOT
Serial Number: 301792

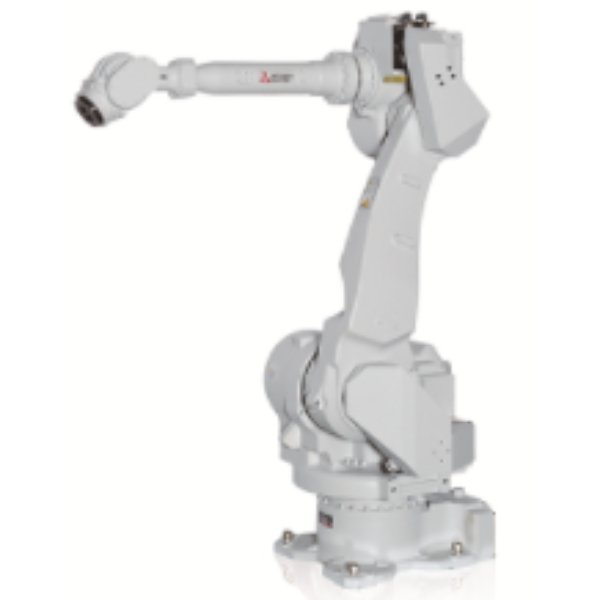

Product Details: Industrial Robot RV-70F-D 6-axis; +/- 0.07mm; 70kg; 2050mm; IP67; incl. CR760
ROBOTSYSTEM
SERIES RV-F SERIES BIG CAPACITY ROBOT
TYPE VERTICAL
PAYLOAD (KG) 70
DEGREES OF FREEDOM 6
INSTALLATION METHOD FLOOR
SPEED (MM/S) 13000
REPEATABILITY (MM) 0,07
MAX. REACH RADIUS (MM) 2050
OPERATING RANGE J1 (DEG) 330
OPERATING RANGE J2 (DEG) 215
OPERATING RANGE J3 (DEG) 261
OPERATING RANGE J4 (DEG) 720
OPERATING RANGE J5 (DEG) 250
OPERATING RANGE J6 (DEG) 900
ENVIRONMENT SPECIFICATION OIL MIST
CONTROLLER TYPE CR760-D
PROTECTION CLASS IP67
POWER SUPPLY 3 PHASE (VAC) 180-253
POWER CONSUMPTION (VA) 20000
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 648
HEIGHT (MM) 1852
DEPTH (MM) 1955
WEIGHT (KG) 640
ORDER CODES
EUROPEAN ORDER CODE 301792
GLOBAL ORDER CODE 2RS991-0010X4
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG24401
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1,202 KG
VOLUME 5,428.512 CDM
LENGTH 216 CM
WIDTH 122 CM
HEIGHT 206 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE NOT IN SCOPE
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 117-81-7
7439-92-1
68-12-2
872-50-4
10141-05-6
12060-00-3
13560-89-9
80-05-7
15571-58-1
541-02-6
110-71-4
127-19-5
10043-35-3
540-97-6
556-67-2
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
