Type: VERTICAL
Series: RV-FR SERIES
Serial Number: 313053

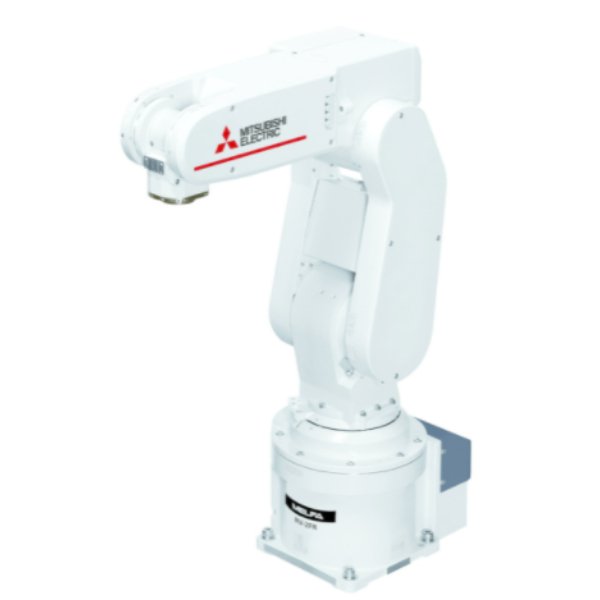

Product Details: Industrial Robot RV-2FR-D 6-axis; +/- 0,02mm; 2kg; 504mm; IP30; incl. CR800
ROBOTSYSTEM
SERIES RV-FR SERIES
TYPE VERTICAL
PAYLOAD (KG) 2
DEGREES OF FREEDOM 6
INSTALLATION METHOD FLOOR, CEILING, WALL
SPEED (MM/S) 4955
REPEATABILITY (MM) 0,02
CYCLE TIME (S) 0,6
MAX. REACH RADIUS (MM) 504
OPERATING RANGE J1 (DEG) 480
OPERATING RANGE J2 (DEG) 240
OPERATING RANGE J3 (DEG) 160
OPERATING RANGE J4 (DEG) 400
OPERATING RANGE J5 (DEG) 240
OPERATING RANGE J6 (DEG) 720
ENVIRONMENT SPECIFICATION STANDARD
CONTROLLER TYPE CR800-D
PROTECTION CLASS IP30
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 500
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 160
HEIGHT (MM) 623
DEPTH (MM) 525
WEIGHT (KG) 19
ORDER CODES
EUROPEAN ORDER CODE 313053
GLOBAL ORDER CODE 2R1340
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG25101
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 61 KG
VOLUME 718.08 CDM
LENGTH 110 CM
WIDTH 96 CM
HEIGHT 68 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE NOT IN SCOPE
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 1303-86-2
7439-92-1
80-05-7
12060-00-3
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
