Type: VERTICAL
Series: RV-FR SERIES
Serial Number: 314064

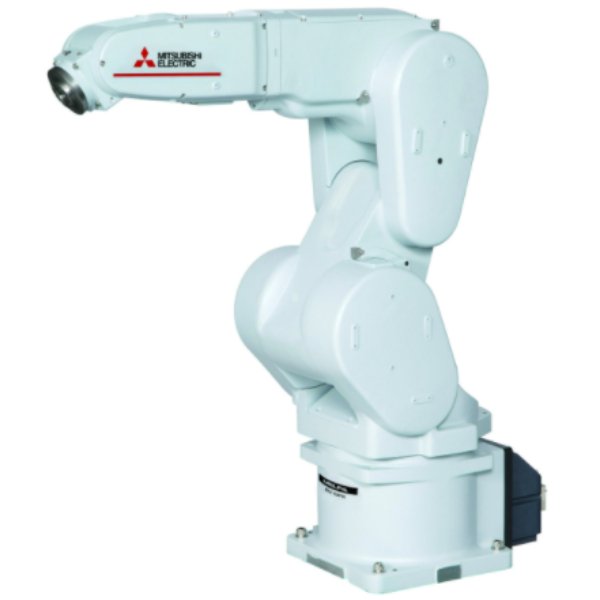

Product Details: Industrial Robot RV-13FR-R 6-axis; +/- 0.05mm; 13kg; 1094mm; IP67; incl. CR800
ROBOTSYSTEM
SERIES RV-FR SERIES
TYPE VERTICAL
PAYLOAD (KG) 13
DEGREES OF FREEDOM 6
INSTALLATION METHOD FLOOR, CEILING, WALL
SPEED (MM/S) 10450
REPEATABILITY (MM) 0,05
CYCLE TIME (S) 0,53
MAX. REACH RADIUS (MM) 1094
OPERATING RANGE J1 (DEG) 380
OPERATING RANGE J2 (DEG) 240
OPERATING RANGE J3 (DEG) 167,5
OPERATING RANGE J4 (DEG) 400
OPERATING RANGE J5 (DEG) 240
OPERATING RANGE J6 (DEG) 720
ENVIRONMENT SPECIFICATION OIL MIST
CONTROLLER TYPE CR800-R
PROTECTION CLASS IP67
POWER SUPPLY 1 PHASE (VAC) 230
POWER SUPPLY 3 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 3000
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 347
HEIGHT (MM) 997
DEPTH (MM) 1088
WEIGHT (KG) 120
ORDER CODES
EUROPEAN ORDER CODE 314064
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG25402
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 222 KG
VOLUME 1,637.172 CDM
LENGTH 163 CM
WIDTH 81 CM
HEIGHT 124 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
