Type: SCARA
Series: RH-FR SERIES
Serial Number: 313666

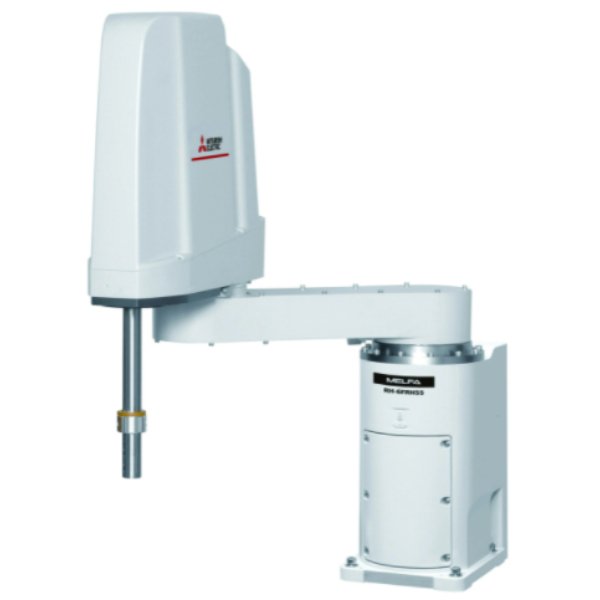

Product Details: Industrial Robot RH-6FRH-R 4-axis; +/- 0,012mm; 6kg; 550/200mm; incl. CR800
ROBOTSYSTEM
SERIES RH-FR SERIES
TYPE SCARA
PAYLOAD (KG) 6
DEGREES OF FREEDOM 4
INSTALLATION METHOD FLOOR
SPEED (MM/S) 8300
REPEATABILITY (MM) 0,012
CYCLE TIME (S) 0,29
MAX. REACH RADIUS (MM) 550
OPERATING RANGE J1 (DEG) 340
OPERATING RANGE J2 (DEG) 290
OPERATING RANGE J4 (DEG) 720
Z AXIS STROKE (MM) 200
ENVIRONMENT SPECIFICATION OIL MIST
CONTROLLER TYPE CR800-R
PROTECTION CLASS IP54
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 1000
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 174
HEIGHT (MM) 798
DEPTH (MM) 775
WEIGHT (KG) 37
ORDER CODES
EUROPEAN ORDER CODE 313666
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG24802
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 139 KG
VOLUME 1,801.44 CDM
LENGTH 162 CM
WIDTH 80 CM
HEIGHT 139 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
