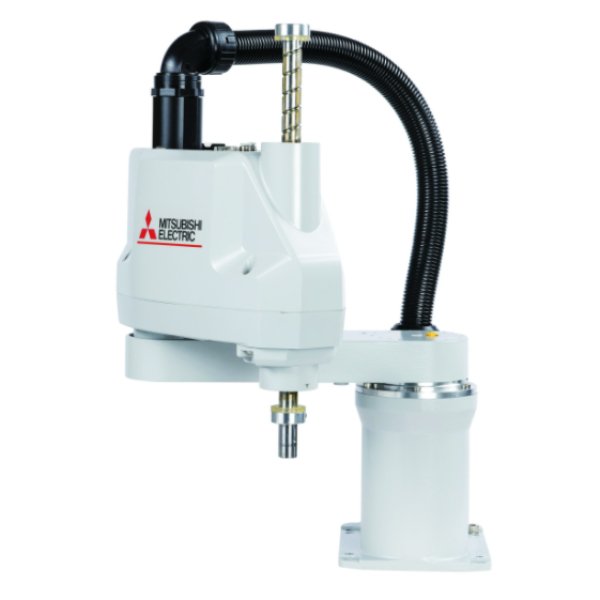

Type: SCARA
Series: RH-CRH
Serial Number: 500838
Product Details: ROBOTSYSTEM
SERIES RH-CRH
TYPE SCARA
PAYLOAD (KG) 6
DEGREES OF FREEDOM 4
INSTALLATION METHOD FLOOR
SPEED (MM/S) 7800
REPEATABILITY (MM) 0,02
CYCLE TIME (S) 0,41
MAX. REACH RADIUS (MM) 600
OPERATING RANGE J1 (DEG) 264
OPERATING RANGE J2 (DEG) 300
OPERATING RANGE J4 (DEG) 720
Z AXIS STROKE (MM) 200
ENVIRONMENT SPECIFICATION STANDARD
CONTROLLER TYPE CR800-CHD
PROTECTION CLASS IP20
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 500
