Type: SCARA
Series: RH-FR SERIES
Serial Number: 312928

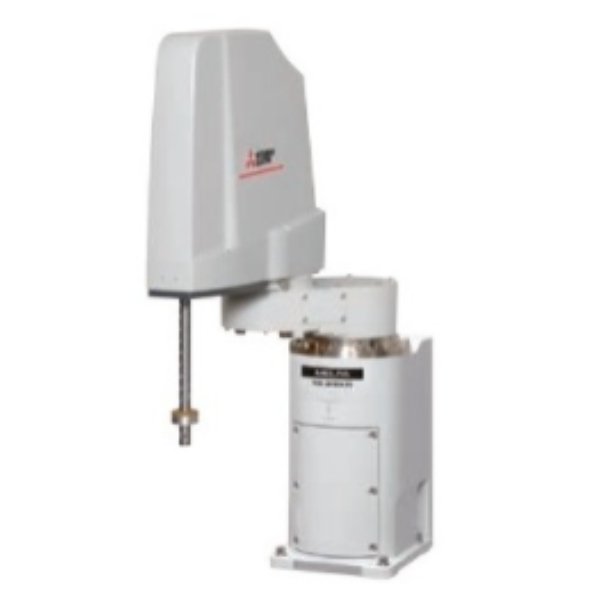

Product Details: Industrial Robot RH-3FRH-D 4-axis; +/- 0,01mm; 3kg; 350/150mm; incl. CR800
ROBOTSYSTEM
SERIES RH-FR SERIES
TYPE SCARA
PAYLOAD (KG) 3
DEGREES OF FREEDOM 4
INSTALLATION METHOD FLOOR
SPEED (MM/S) 6800
REPEATABILITY (MM) 0,01
CYCLE TIME (S) 0,41
MAX. REACH RADIUS (MM) 350
OPERATING RANGE J1 (DEG) 340
OPERATING RANGE J2 (DEG) 290
OPERATING RANGE J4 (DEG) 720
Z AXIS STROKE (MM) 150
ENVIRONMENT SPECIFICATION STANDARD
CONTROLLER TYPE CR800-D
PROTECTION CLASS IP20
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 500
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 174
HEIGHT (MM) 773
DEPTH (MM) 565
WEIGHT (KG) 29
ORDER CODES
EUROPEAN ORDER CODE 312928
GLOBAL ORDER CODE 2R1099
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG24701
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 116.5 KG
VOLUME 1,649.687 CDM
LENGTH 162 CM
WIDTH 80,5 CM
HEIGHT 126,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 250375 RH-3FH3515-D1-S15
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 117-81-7
1303-86-2
7439-92-1
80-05-7
12060-00-3
101-14-4
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
