Type: SCARA
Series: RH-FR SERIES
Serial Number: 312995

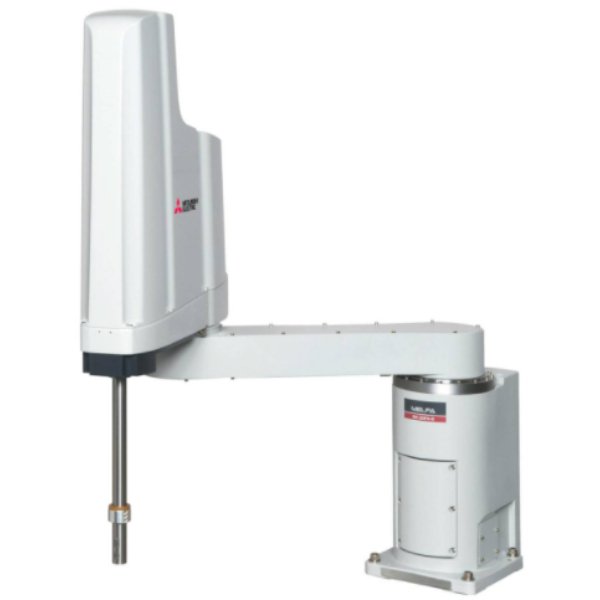

Product Details: Industrial Robot RH-20FRH-D 4-axis; +/- 0,02mm; 20kg; 1000/350mm; incl. CR800
ROBOTSYSTEM
SERIES RH-FR SERIES
TYPE SCARA
PAYLOAD (KG) 20
DEGREES OF FREEDOM 4
INSTALLATION METHOD FLOOR
SPEED (MM/S) 13283
REPEATABILITY (MM) 0,02
CYCLE TIME (S) 0,36
MAX. REACH RADIUS (MM) 1000
OPERATING RANGE J1 (DEG) 340
OPERATING RANGE J2 (DEG) 306
OPERATING RANGE J4 (DEG) 720
Z AXIS STROKE (MM) 350
ENVIRONMENT SPECIFICATION OIL MIST
CONTROLLER TYPE CR800-D
PROTECTION CLASS IP54
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 1500
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 240
HEIGHT (MM) 1080
DEPTH (MM) 1200
WEIGHT (KG) 77
ORDER CODES
EUROPEAN ORDER CODE 312995
GLOBAL ORDER CODE 2R1230
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG25001
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 185 KG
VOLUME 2,156.838 CDM
LENGTH 183 CM
WIDTH 83 CM
HEIGHT 142 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 254388 RH-20FH10035N-D1-S15
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
117-81-7
1303-86-2
80-05-7
12060-00-3
101-14-4
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
