Type: SCARA
Series: RH-FR SERIES
Serial Number: 313672

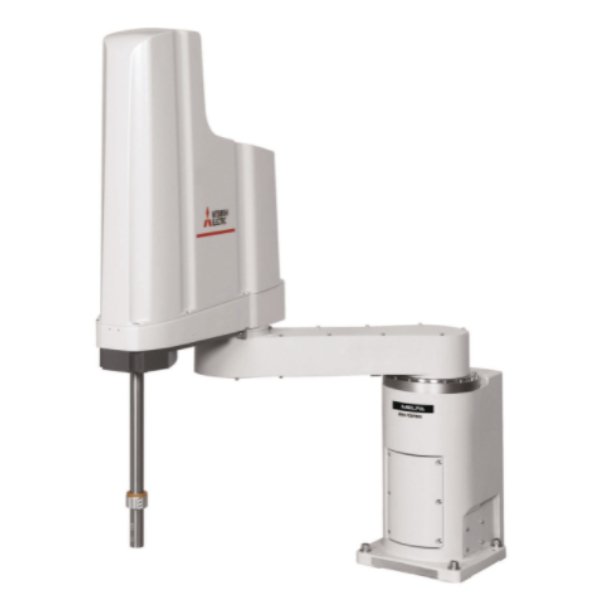

Product Details: Industrial Robot RH-12FRH-R 4-axis; +/- 0,015mm; 12kg; 850/350mm; incl. CR800
ROBOTSYSTEM
SERIES RH-FR SERIES
TYPE SCARA
PAYLOAD (KG) 12
DEGREES OF FREEDOM 4
INSTALLATION METHOD FLOOR
SPEED (MM/S) 11350
REPEATABILITY (MM) 0,015
CYCLE TIME (S) 0,3
MAX. REACH RADIUS (MM) 850
OPERATING RANGE J1 (DEG) 340
OPERATING RANGE J2 (DEG) 306
OPERATING RANGE J4 (DEG) 720
Z AXIS STROKE (MM) 350
ENVIRONMENT SPECIFICATION OIL MIST
CONTROLLER TYPE CR800-R
PROTECTION CLASS IP54
POWER SUPPLY 1 PHASE (VAC) 200-230
POWER CONSUMPTION (VA) 1500
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 240
HEIGHT (MM) 1080
DEPTH (MM) 1050
WEIGHT (KG) 69
ORDER CODES
EUROPEAN ORDER CODE 313672
CLASSIFICATION DATA
PRODUCT HIERARCHY IAG24902
CLASS DESCRIPTION FA-Robot: Robotsystem
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 179 KG
VOLUME 2,349.248 CDM
LENGTH 188 CM
WIDTH 88 CM
HEIGHT 142 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 84795000
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS CLASS 9 – UN3091
