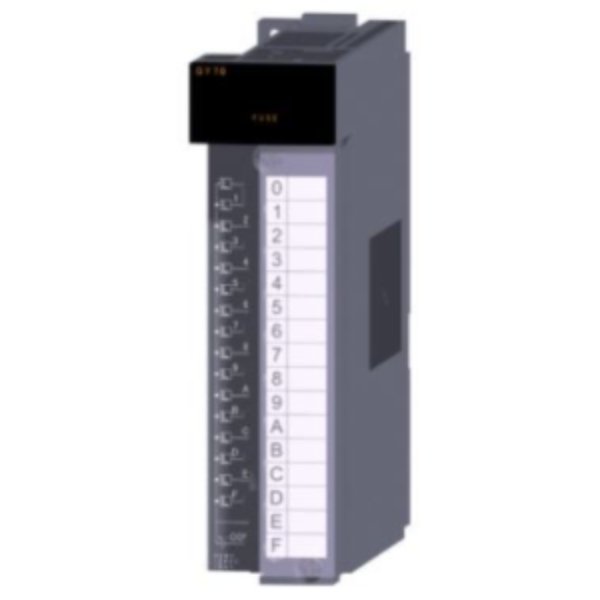

Type: TRANSISTOR OUTPUT (SINK)
Series: MELSEC-Q SERIES
Serial Number:
Product Details: 16 point transistor, 5-12V DC, 16mA/point, 256mA/common, sink, 16 points/common
DIGITAL OUTPUT MODULE
SERIES MELSEC-Q SERIES
TYPE TRANSISTOR OUTPUT (SINK)
POWER SUPPLY (V) 12-24
CURRENT TYPE DC
OCCUPIED I/O POINTS ON PLC 16
INTEGRATED DIGITAL OUTPUTS 16
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
RATED LOAD VOLTAGE (VDC) 5-12
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,095
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,4
HEIGHT (MM) 98
DEPTH (MM) 90
WEIGHT (KG) 0,14
ORDER CODES
EUROPEAN ORDER CODE 136404
GLOBAL ORDER CODE 1W4303
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.166 KG
VOLUME 0.473 CDM
LENGTH 13,5 CM
WIDTH 10 CM
HEIGHT 3,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
