Type: TRANSISTOR OUTPUT (SINK)
Series: MELSEC-Q SERIES
Serial Number:

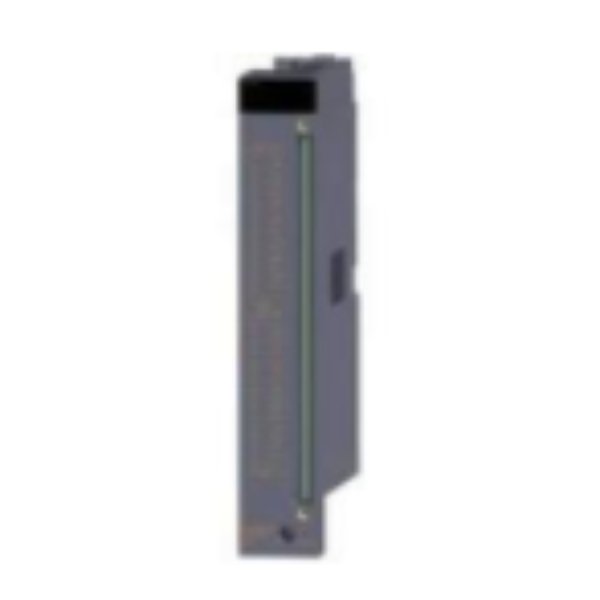

Product Details: PLC Q Series Output module;12- 24V DC;0,5A;32 transistor outputs;sink
DIGITAL OUTPUT MODULE
SERIES MELSEC-Q SERIES
TYPE TRANSISTOR OUTPUT (SINK)
POWER SUPPLY (V) 12-24
CURRENT TYPE DC
OCCUPIED I/O POINTS ON PLC 32
INTEGRATED DIGITAL OUTPUTS 32
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
RATED LOAD VOLTAGE (VDC) 12-24
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,1
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 37,5
HEIGHT (MM) 220
DEPTH (MM) 116,5
WEIGHT (KG) 0,28
ORDER CODES
EUROPEAN ORDER CODE 269956
GLOBAL ORDER CODE 1W4327
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.45 KG
VOLUME 5.002 CDM
LENGTH 30,5 CM
WIDTH 20,5 CM
HEIGHT 8 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
