Type: HIGH-SPEED TRANSISTOR OUTPUT
Series: MELSEC-Q SERIES
Serial Number:

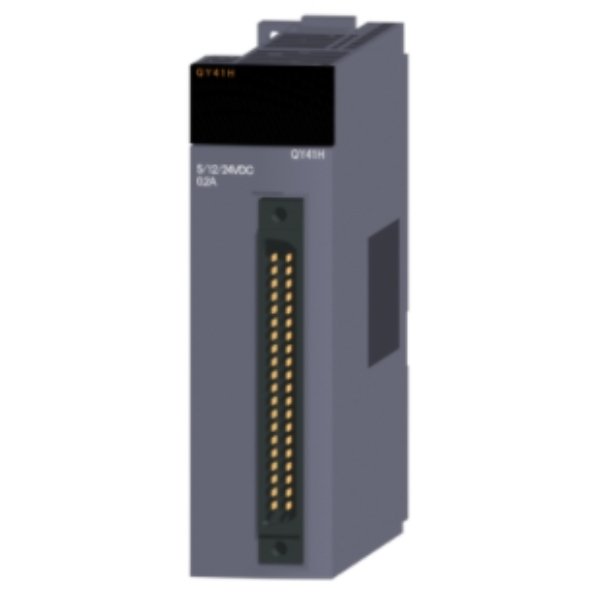

Product Details: PLC Q series, high speed transistor, 12-24V DC, sink, 16 points
DIGITAL OUTPUT MODULE
SERIES MELSEC-Q SERIES
TYPE HIGH-SPEED TRANSISTOR OUTPUT
OCCUPIED I/O POINTS ON PLC 32
INTEGRATED DIGITAL OUTPUTS 32
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
RATED LOAD VOLTAGE (VDC) 5-24
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,37
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,4
HEIGHT (MM) 98
DEPTH (MM) 90
WEIGHT (KG) 0,1
ORDER CODES
EUROPEAN ORDER CODE 308738
GLOBAL ORDER CODE 1W4328
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.137 KG
VOLUME 0.44 CDM
LENGTH 11 CM
WIDTH 10 CM
HEIGHT 4 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
