Type: LOOP CONTROL
Series: MELSEC-Q SERIES
Serial Number:

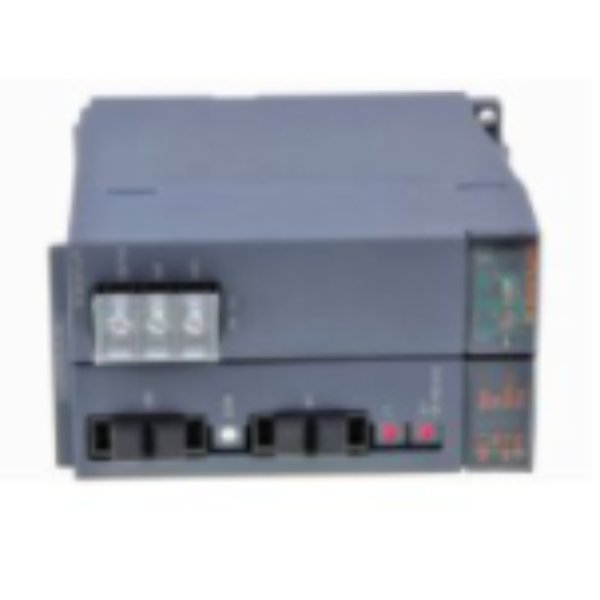

Product Details: PLC Q Series Loop control unit 2 channel R,K,J,T/current/voltage 2analog outputs
TEMPERATURE MODULE
SERIES MELSEC-Q SERIES
POWER SUPPLY (V) 24
APPLICABLE THERMOCOUPLE TYPE B,R,S,K,E,J,T,N
OCCUPIED I/O POINTS ON PLC 16
CURRENT TYPE DC
TYPE LOOP CONTROL
INTEGRATED ANALOGUE INPUTS 2
INT. CURRENT CONSUMPTION (A) 0,27
INPUT TYPE THERMOCOUPLE
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,4
HEIGHT (MM) 98
DEPTH (MM) 112
WEIGHT (KG) 0,25
ORDER CODES
EUROPEAN ORDER CODE 200693
GLOBAL ORDER CODE 1W4257
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Temperature Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.31 KG
VOLUME 1.785 CDM
LENGTH 17 CM
WIDTH 15 CM
HEIGHT 7 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
