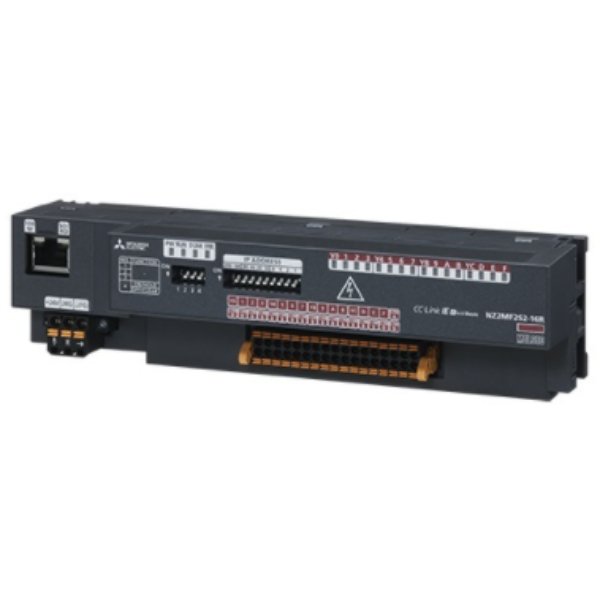

Type: REMOTE RELAY OUTPUT
Series: CC-LINK IE FIELD NETWORK BASIC
Serial Number:
Product Details: Remote I/O, CC-Link IE Field Basic, 16 relay out., DC24V/AC240V 2A, spring clamp
DIGITAL OUTPUT MODULE
SERIES CC-LINK IE FIELD NETWORK BASIC
TYPE REMOTE RELAY OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL OUTPUTS 16
OUTPUT TYPE RELAY
RATED LOAD VOLTAGE (VAC) 240
RATED LOAD VOLTAGE (VDC) 24
WIRING SPRING CLAMP
INT. CURRENT CONSUMPTION (A) 0,153
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 200
HEIGHT (MM) 50
DEPTH (MM) 68
WEIGHT (KG) 0,30
ORDER CODES
EUROPEAN ORDER CODE 589595
GLOBAL ORDER CODE 1WG014
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.44 KG
VOLUME 2.32 CDM
LENGTH 29 CM
WIDTH 8 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
