Type: REMOTE I/O COMBINED MODULE
Series: CC-LINK IE TSN
Serial Number:

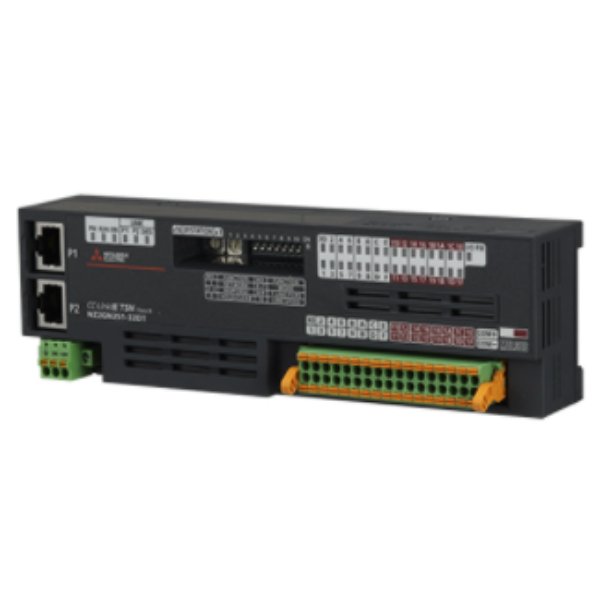

Product Details: PLC Remote I/O Module; CC-Link IE TSN; 16 inp. 16 tr. outputs sink; spring cl.
DIGITAL I/O MODULE
SERIES CC-LINK IE TSN
TYPE REMOTE I/O COMBINED MODULE
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 16
INTEGRATED DIGITAL OUTPUTS 16
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SINK
WIRING SPRING CLAMP
INT. CURRENT CONSUMPTION (A) 0,11
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 179
HEIGHT (MM) 54,5
DEPTH (MM) 45,5
WEIGHT (KG) 0,2
ORDER CODES
EUROPEAN ORDER CODE 481270
GLOBAL ORDER CODE 1EN004
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.325 KG
VOLUME 1.594 CDM
LENGTH 25 CM
WIDTH 8,5 CM
HEIGHT 7,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
