Type: REMOTE I/O COMBINED MODULE
Series: CC-LINK IE TSN
Serial Number:

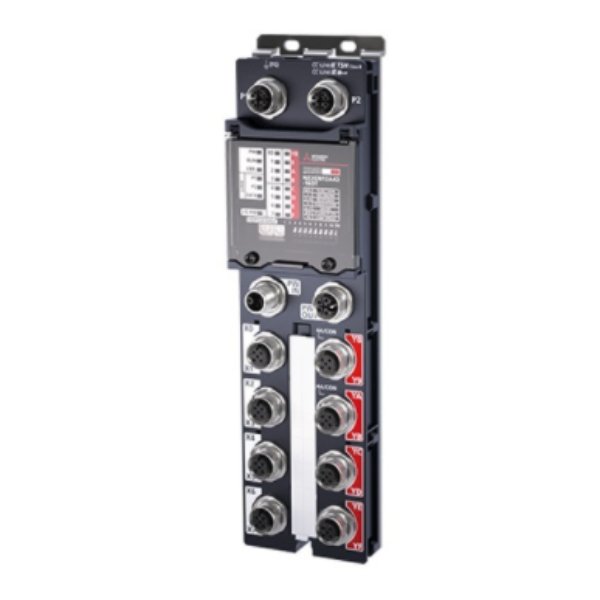

Product Details: PLC Remote I/O Module; CC-Link IE TSN; 8 inputs+8 tran. outputs source; IP67 M12
DIGITAL I/O MODULE
SERIES CC-LINK IE TSN
TYPE REMOTE I/O COMBINED MODULE
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 8
INTEGRATED DIGITAL OUTPUTS 8
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 12-24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,16
ORDER CODES
EUROPEAN ORDER CODE 600548
GLOBAL ORDER CODE 1EN105
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.577 KG
VOLUME 3.1 CDM
LENGTH 31 CM
WIDTH 10 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
