Type: CC-LINK IE FIELD NETWORK
Series:
Serial Number:

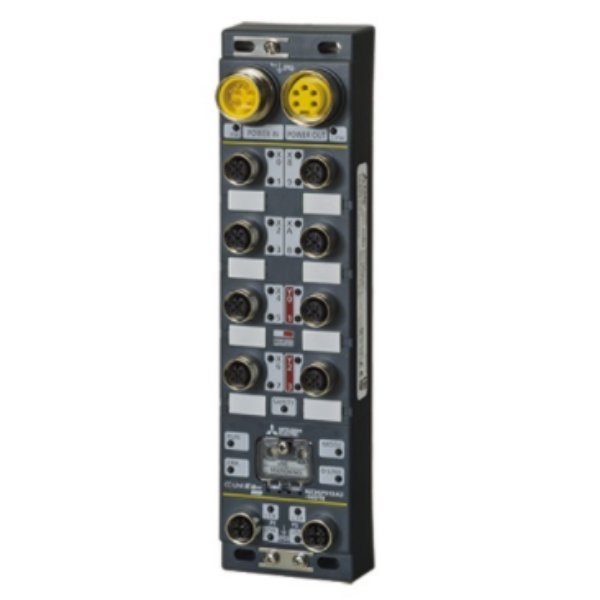

Product Details: PLC Safety Remote I/O module, CC-Link IE Field, IP67; I:neg. com. O:source(dbl)
DIGITAL I/O MODULE
TYPE CC-LINK IE FIELD NETWORK
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 12/6
INTEGRATED DIGITAL OUTPUTS 4/2
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE+SOURCE
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,19
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 235
DEPTH (MM) 48,5
WEIGHT (KG) 0,89
ORDER CODES
EUROPEAN ORDER CODE 476592
GLOBAL ORDER CODE 1FP807
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD51403
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.061 KG
VOLUME 1.696 CDM
LENGTH 28,5 CM
WIDTH 7 CM
HEIGHT 8,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
