Type: REMOTE ANALOG INPUT
Series: CC-LINK IE FIELD NETWORK
Serial Number:

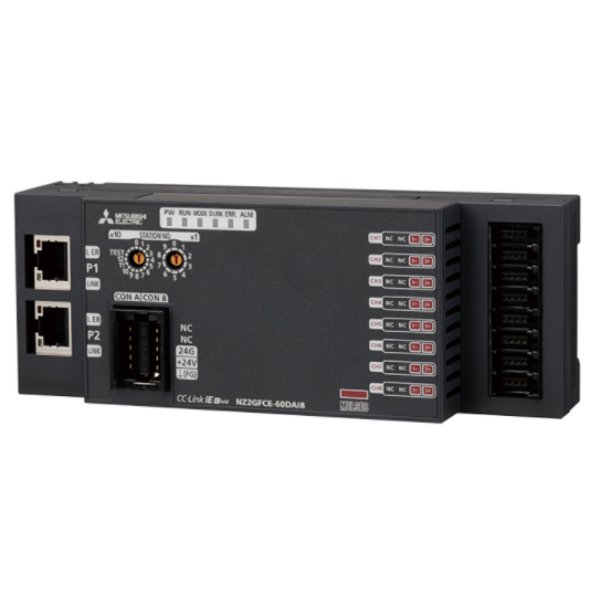

Product Details: CC-Link IE field network remote IO, Analog Input Voltage, 8channel, DC10-10V
ANALOGUE I/O MODULE
SERIES CC-LINK IE FIELD NETWORK
TYPE REMOTE ANALOG INPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED ANALOGUE INPUTS 8
INPUT VOLTAGE RANGE (V) -10-10; 0-5; 1-5
WIRING CONNECTOR
INT. CURRENT CONSUMPTION (A) 0,15
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 175
HEIGHT (MM) 65
DEPTH (MM) 47
WEIGHT (KG) 0,22
ORDER CODES
EUROPEAN ORDER CODE 312912
GLOBAL ORDER CODE 1WF313
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Analogue I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.345 KG
VOLUME 2.277 CDM
LENGTH 23 CM
WIDTH 9 CM
HEIGHT 11 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
80-05-7
DANGEROUS GOODS REGULATIONS NO
