Type: REMOTE TRIAC OUTPUT
Series: CC-LINK IE FIELD NETWORK
Serial Number:

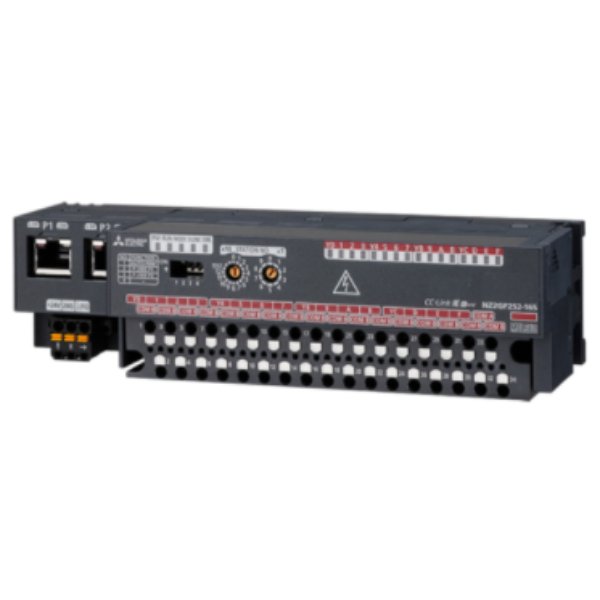

Product Details: CC-Link IE field network remote IO, 16 Points, AC100-240V/0.6A, Spring
DIGITAL OUTPUT MODULE
SERIES CC-LINK IE FIELD NETWORK
TYPE REMOTE TRIAC OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL OUTPUTS 16
OUTPUT TYPE TRIAC
RATED LOAD VOLTAGE (VAC) 100-240
WIRING SPRING CLAMP
INT. CURRENT CONSUMPTION (A) 0,17
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 200
HEIGHT (MM) 50
DEPTH (MM) 68
WEIGHT (KG) 0,45
ORDER CODES
EUROPEAN ORDER CODE 312910
GLOBAL ORDER CODE 1WF056
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital Output Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.574 KG
VOLUME 2.28 CDM
LENGTH 28,5 CM
WIDTH 8 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
