Type: CC-LINK IE FIELD NETWORK
Series:
Serial Number:

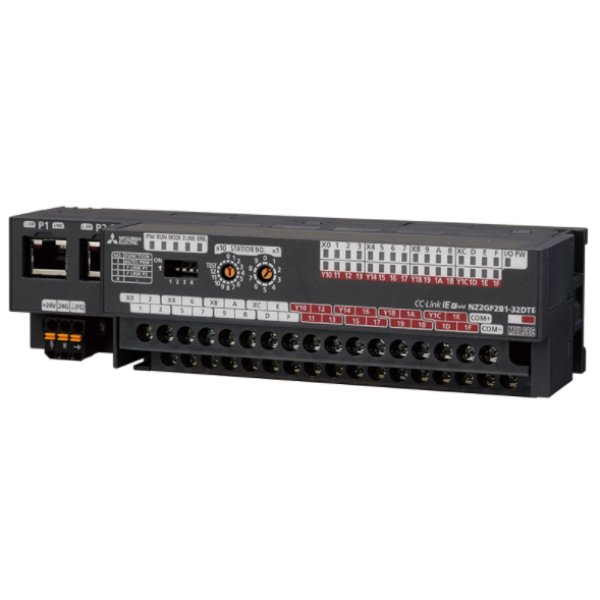

Product Details: CC-Link IE field network remote IO, 32 Points Input-Output (Minus Common/Source)
DIGITAL I/O MODULE
TYPE CC-LINK IE FIELD NETWORK
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED DIGITAL INPUTS 16
INTEGRATED DIGITAL OUTPUTS 16
RATED INPUT VOLTAGE (VDC) 24
RATED LOAD VOLTAGE (VDC) 24
OUTPUT TYPE TRANSISTOR
OUTPUT LOGIC SOURCE
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,12
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 200
HEIGHT (MM) 50
DEPTH (MM) 68
WEIGHT (KG) 0,38
ORDER CODES
EUROPEAN ORDER CODE 312894
GLOBAL ORDER CODE 1WF047
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Digital I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.509 KG
VOLUME 2.28 CDM
LENGTH 28,5 CM
WIDTH 8 CM
HEIGHT 10 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
DANGEROUS GOODS REGULATIONS NO
