Type: REMOTE ANALOG INPUT
Series: CC-LINK IE FIELD NETWORK
Serial Number:

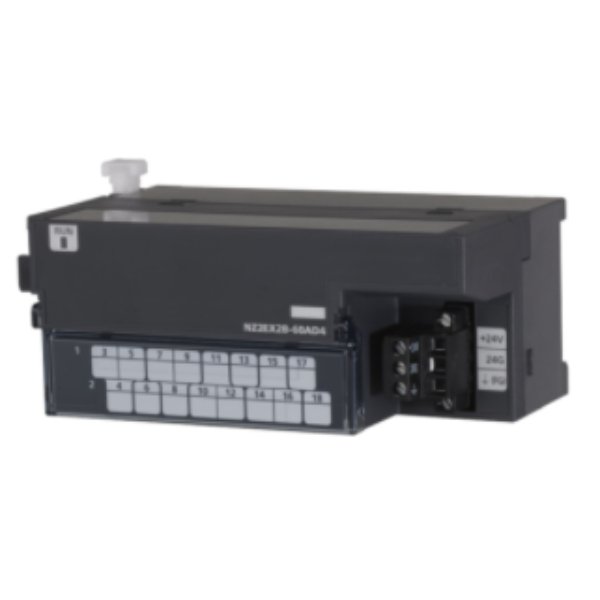

Product Details: PLC CC-Link IE Field Ext. I/O module; 4 channel analogue to digital
ANALOGUE I/O MODULE
SERIES CC-LINK IE FIELD NETWORK
TYPE REMOTE ANALOG INPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED STATIONS 1
INTEGRATED ANALOGUE INPUTS 4
INPUT VOLTAGE RANGE (V) -10-10; 0-5; 1-5
INPUT CURRENT RANGE (MA) 0-20; 4-20
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,09
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 115
HEIGHT (MM) 50
DEPTH (MM) 68
WEIGHT (KG) 0,22
ORDER CODES
EUROPEAN ORDER CODE 313468
GLOBAL ORDER CODE 1WF306
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50305
CLASS DESCRIPTION FA-MOD PLC: Analogue I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.319 KG
VOLUME 1.131 CDM
LENGTH 19 CM
WIDTH 7 CM
HEIGHT 8,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
80-05-7
DANGEROUS GOODS REGULATIONS NO
