Type: NF-R TYPE (CURRENT-LIMITING)
Series: WS SERIES – MCCB
Serial Number: 204801

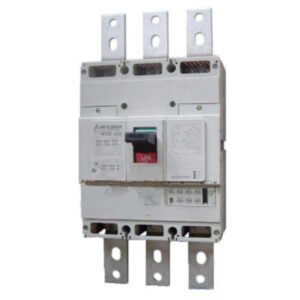

Product Details: Circuit breaker 3pole. Ir = 400 – 800A; Icu / Ics = 125 / 63kA at AC 440V
MOULDED-CASE CIRCUIT BREAKER
SERIES WS SERIES – MCCB
TYPE NF-R TYPE (CURRENT-LIMITING)
NUMBER OF POLES 3
RATED CURRENT (A) 800
CURRENT TYPE AC
RATED VOLTAGE (V) 690
BREAKING CAPACITY AT 400V (KA) 125
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 210
HEIGHT (MM) 275
DEPTH (MM) 155
WEIGHT (KG) 10,9
ORDER CODES
EUROPEAN ORDER CODE 204801
GLOBAL ORDER CODE 2FM606A00001U
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN10123
CLASS DESCRIPTION FA-MCCB: Moulded-Case Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 11.857 KG
VOLUME 26.534 CDM
LENGTH 28,5 CM
WIDTH 49 CM
HEIGHT 19 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85362090
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 139964
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
