Type:
Series:
Serial Number: 204799

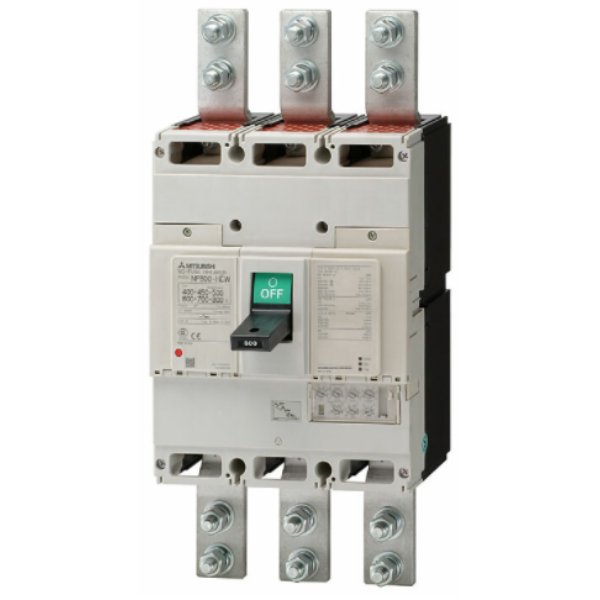

Product Details: Circuit breaker 3pole. Ir = 400 – 800A; Icu = Ics = 65kA at AC 440V
MOULDED-CASE CIRCUIT BREAKER
SERIES WS SERIES – MCCB
TYPE NF-H TYPE (HIGH-PERFORMANCE)
NUMBER OF POLES 3
RATED CURRENT (A) 800
CURRENT TYPE AC
RATED VOLTAGE (V) 690
BREAKING CAPACITY AT 400V (KA) 70
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 210
HEIGHT (MM) 275
DEPTH (MM) 155
WEIGHT (KG) 10,9
ORDER CODES
EUROPEAN ORDER CODE 204799
GLOBAL ORDER CODE 2FM506A00001S
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN10123
CLASS DESCRIPTION FA-MCCB: Moulded-Case Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 11.84 KG
VOLUME 26.263 CDM
LENGTH 48,5 CM
WIDTH 28,5 CM
HEIGHT 19 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85362090
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 139962
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
