Type: NF-L TYPE (HIGH-PERFORMANCE)
Series: WS-V SERIES – MCCB
Serial Number: 255129

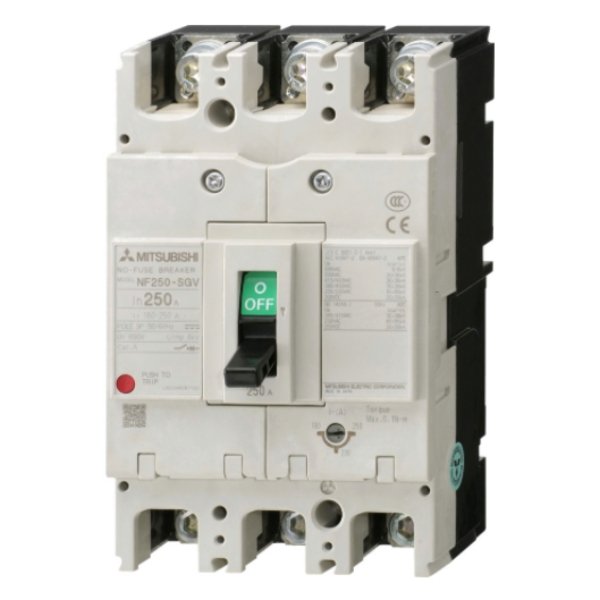

Product Details: Circuit breaker 3pole. Ir = 175 – 250A; Icu = Ics = 50kA at AC 440V
MOULDED-CASE CIRCUIT BREAKER
SERIES WS-V SERIES – MCCB
TYPE NF-L TYPE (HIGH-PERFORMANCE)
NUMBER OF POLES 3
CURRENT TYPE AC/DC
RATED VOLTAGE (V) 690
BREAKING CAPACITY AT 400V (KA) 50
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 105
HEIGHT (MM) 165
DEPTH (MM) 92
WEIGHT (KG) 1,6
ORDER CODES
EUROPEAN ORDER CODE 255129
GLOBAL ORDER CODE 2CM214A00000A
CLASSIFICATION DATA
PRODUCT HIERARCHY IAN10201
CLASS DESCRIPTION FA-MCCB: Moulded-Case Circuit Breaker
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.747 KG
VOLUME 2.321 CDM
LENGTH 17 CM
WIDTH 13 CM
HEIGHT 10,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85362010
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 255120 NF250-SGV 3P 175-250A
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
