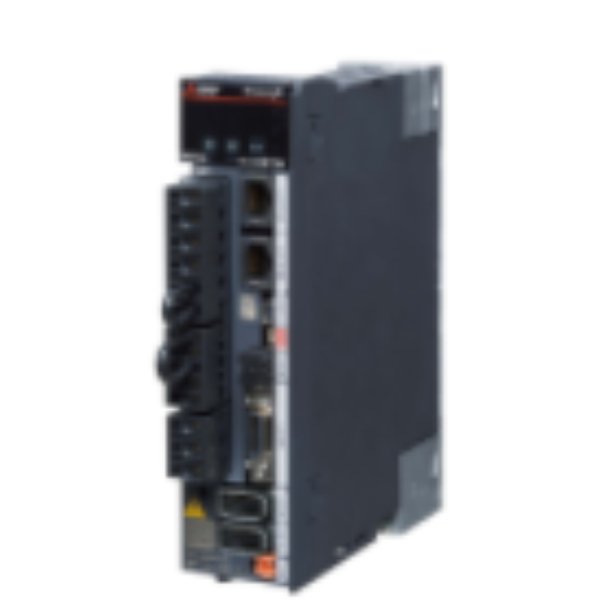

Type: MR-J5
Series: MELSERVO-J5
Serial Number: 492896
Product Details: Digital AC-Servo Amplifier; MR-J5-G; for Motor Power up to up to 100 W; RJ type
SERVO AMPLIFIER
SERIES MELSERVO-J5
TYPE MR-J5
RATED CAPACITY (KW) 0,1
NUMBER OF AXES 1
SAFETY FUNCTION TYPE STO (IEC/EN 61800-5-2)
POWER SUPPLY 1 PHASE (VAC) 200-240
POWER SUPPLY 3 PHASE (VAC) 200-240
DYNAMIC BREAK BUILT-IN
ADDITIONAL PRODUCT INFORMATION
DIFFERENCE TO STANDARD 1 FULL CLOSED LOOP
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 40
HEIGHT (MM) 172
DEPTH (MM) 135
WEIGHT (KG) 0,8
ORDER CODES
EUROPEAN ORDER CODE 492896
GLOBAL ORDER CODE 1GW601
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30015
CLASS DESCRIPTION FA-Servo-Motion: Servo Amplifier
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.901 KG
VOLUME 4.048 CDM
LENGTH 23 CM
WIDTH 22 CM
HEIGHT 8 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85371091
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
