Type: HART ANALOG OUTPUT
Series: MELSEC-Q SERIES
Serial Number:

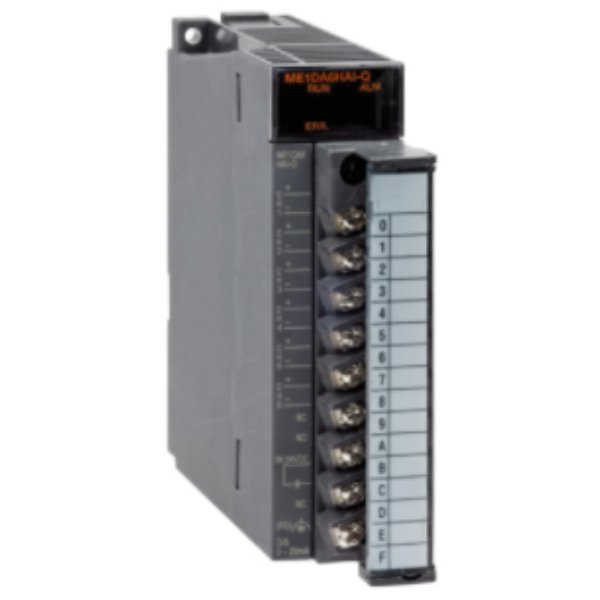

Product Details: PLC Q Series analog module; HART; 6 outputs; current 0/4..20mA
ANALOGUE I/O MODULE
SERIES MELSEC-Q SERIES
TYPE HART ANALOG OUTPUT
POWER SUPPLY (V) 24
CURRENT TYPE DC
OCCUPIED I/O POINTS ON PLC 32
INTEGRATED ANALOGUE OUTPUTS 6
OUTPUT CURRENT RANGE (MA) 0-20; 4-20
WIRING SCREW
INT. CURRENT CONSUMPTION (A) 0,32
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 27,4
HEIGHT (MM) 98
DEPTH (MM) 112
WEIGHT (KG) 0,19
ORDER CODES
EUROPEAN ORDER CODE 236649
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD50702
CLASS DESCRIPTION FA-MOD PLC: Analogue I/O Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.292 KG
VOLUME 1.716 CDM
LENGTH 16 CM
WIDTH 16,5 CM
HEIGHT 6,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN DE
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
