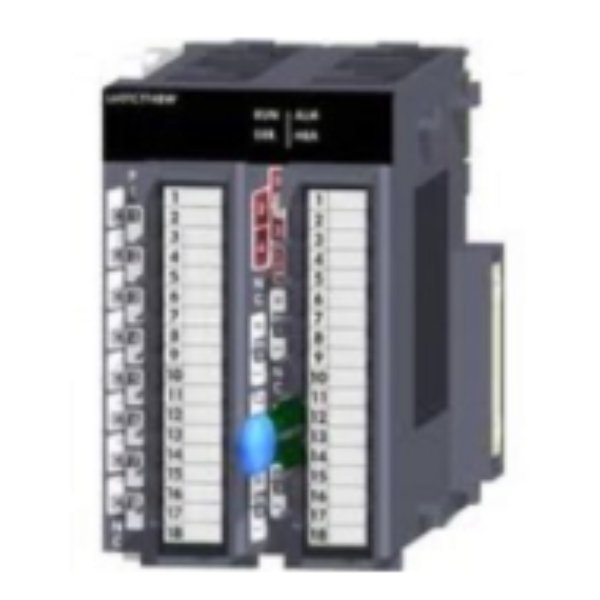

Type: TEMPERATURE CONTROL
Series: MELSEC-L SERIES
Serial Number: 246349
Product Details: SPS, L-Serie Thermocoupler Module;4 channels;Transistor Output;sensor monitoring
TEMPERATURE MODULE
SERIES MELSEC-L SERIES
APPLICABLE THERMOCOUPLE TYPE R,K,J,T,S,B,E,N,U,L,PLII
OCCUPIED I/O POINTS ON PLC 16
TYPE TEMPERATURE CONTROL
INTEGRATED ANALOGUE INPUTS 4
INT. CURRENT CONSUMPTION (A) 0,33
INPUT TYPE THERMOCOUPLE
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 57
HEIGHT (MM) 90
DEPTH (MM) 117
WEIGHT (KG) 0,33
ORDER CODES
EUROPEAN ORDER CODE 246349
GLOBAL ORDER CODE 1WC518
CLASSIFICATION DATA
PRODUCT HIERARCHY IAD510
CLASS DESCRIPTION FA-MOD PLC: Temperature Module
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.458 KG
VOLUME 3.506 CDM
LENGTH 17 CM
WIDTH 16,5 CM
HEIGHT 12,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85389099
COUNTRY OF ORIGIN JP
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED YES
REACH SUBSTANCE CAS NUMBER 7439-92-1
1317-36-8
1303-86-2
DANGEROUS GOODS REGULATIONS NO
