Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481811

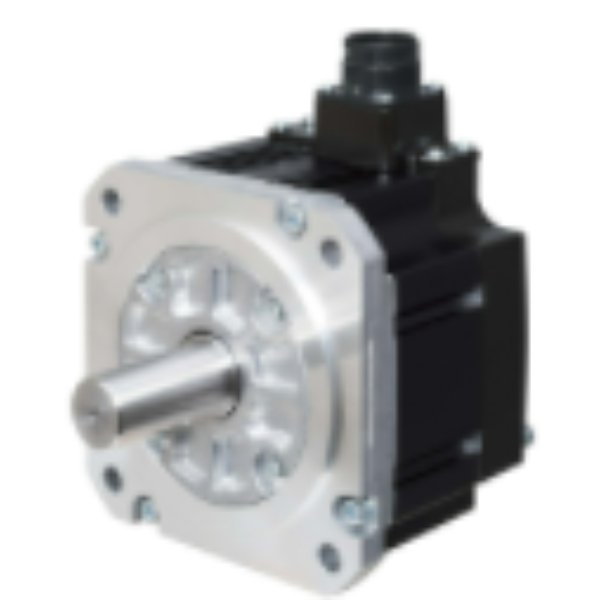

Product Details: Servomotor; HK-ST Series; Power 1/2 kW; Torque 9,5 Nm; 200/400 V; Brake
SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-ST
RATED CAPACITY (KW) 1,2/2
RATED TORQUE (NM) 11,5
MAXIMUM TORQUE (NM) 40,1
RATED SPEED (RPM) 1000/2000
MAXIMUM SPEED (RPM) 2000/4000
INERTIA (KG*CM2) 41,4
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 228,8
DEPTH (MM) 267
WEIGHT (KG) 17
ORDER CODES
EUROPEAN ORDER CODE 481811
GLOBAL ORDER CODE 0GF063
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30232
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 18.405 KG
VOLUME 24.893 CDM
LENGTH 22 CM
WIDTH 36,5 CM
HEIGHT 31 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
