Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481654

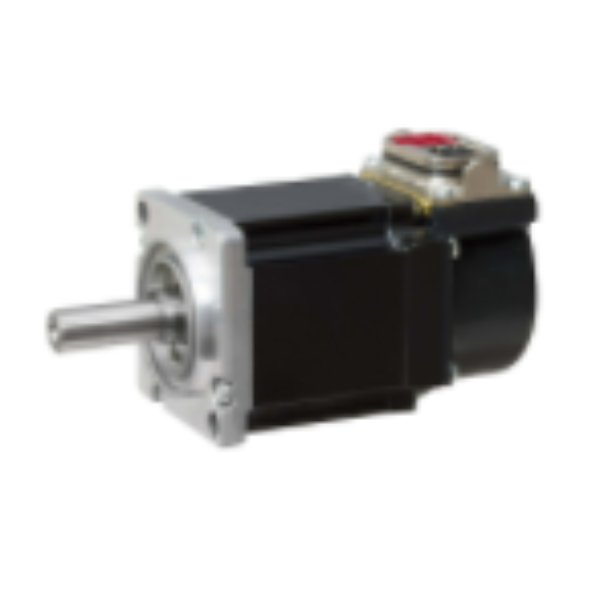

Product Details: Servomotr; HK-KT Series; Power 375/750 W; Torque 2,4 Nm; 200/400V; Brake
SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-KT
RATED CAPACITY (KW) 0,375/0,75
RATED TORQUE (NM) 2,4
MAXIMUM TORQUE (NM) 8,4
RATED SPEED (RPM) 1500/3000
MAXIMUM SPEED (RPM) 3500/6700
INERTIA (KG*CM2) 1,51
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 80
HEIGHT (MM) 96,6
DEPTH (MM) 168
WEIGHT (KG) 2,9
ORDER CODES
EUROPEAN ORDER CODE 481654
GLOBAL ORDER CODE 0GD069
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30230
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 3.026 KG
VOLUME 4.96 CDM
LENGTH 31 CM
WIDTH 10 CM
HEIGHT 16 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
