Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481626

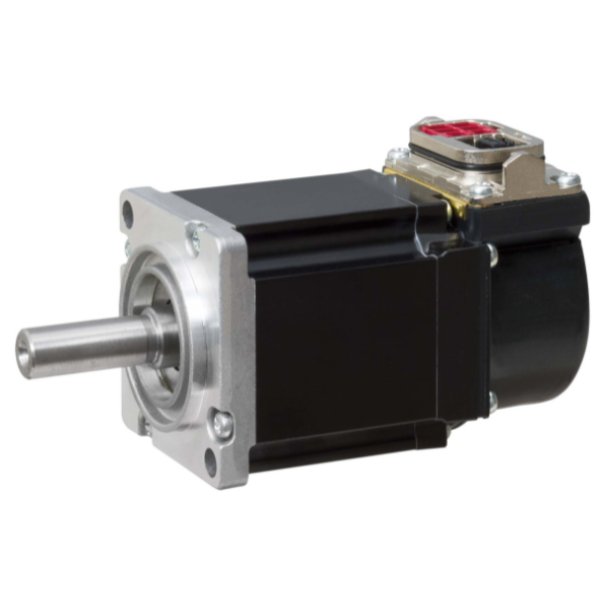

Product Details: Servomotr; HK-KT Series; Power 300/600 W; Torque 1,9 Nm; 200/400V
SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-KT
RATED CAPACITY (KW) 0,3/0,6
RATED TORQUE (NM) 1,9
MAXIMUM TORQUE (NM) 6,7
RATED SPEED (RPM) 1500/3000
MAXIMUM SPEED (RPM) 3500/6700
INERTIA (KG*CM2) 0,598
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 76,6
DEPTH (MM) 133,5
WEIGHT (KG) 1,5
ORDER CODES
EUROPEAN ORDER CODE 481626
GLOBAL ORDER CODE 0GD018
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30230
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 1.666 KG
VOLUME 2.376 CDM
LENGTH 11 CM
WIDTH 24 CM
HEIGHT 9 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
