Type: HK-KT
Series: MELSERVO-J5
Serial Number: 481656
Product Details: Servomotr; HK-KT Series; Power 0,75/1,5 kW; Torque 4,8 Nm; 200/400V; Brake

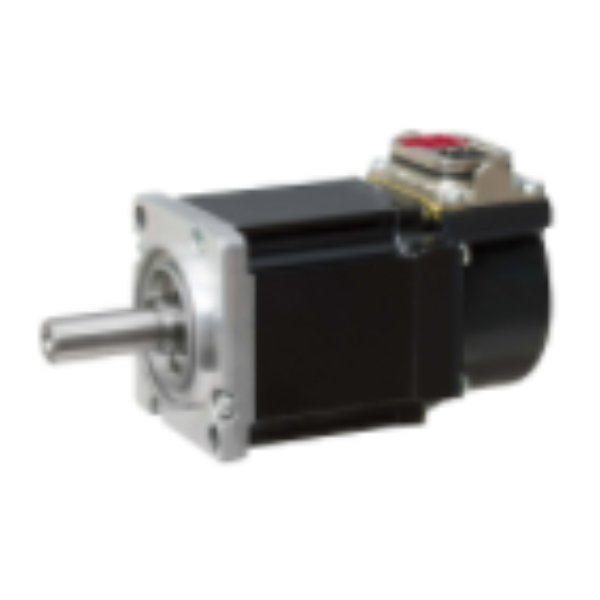

SERVO MOTOR
SERIES MELSERVO-J5
TYPE HK-KT
RATED CAPACITY (KW) 0,75/1,5
RATED TORQUE (NM) 4,8
MAXIMUM TORQUE (NM) 21,5
RATED SPEED (RPM) 1500/3000
MAXIMUM SPEED (RPM) 2500/5000
INERTIA (KG*CM2) 4,72
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200/400
CURRENT TYPE AC
ENCODER TYPE 26-BIT
ENCODER RESOLUTION (P/REV) 67108864
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 90
HEIGHT (MM) 106,6
DEPTH (MM) 198,3
WEIGHT (KG) 4,7
ORDER CODES
EUROPEAN ORDER CODE 481656
GLOBAL ORDER CODE 0GD071
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30230
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 5.2 KG
VOLUME 14.04 CDM
LENGTH 32 CM
WIDTH 19,5 CM
HEIGHT 22,5 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
