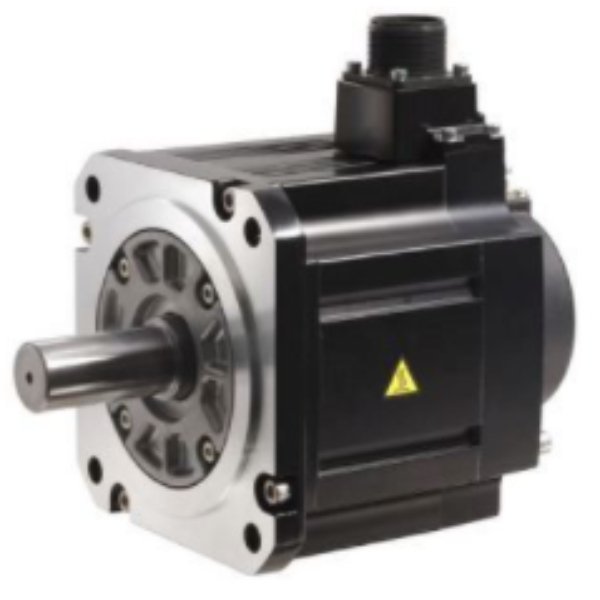

Type: HG-SR
Series: MELSERVO-J4
Serial Number: 261431
Product Details: Servomotor HG Series, Power 500 W; Torque 2.4 Nm, Max. Torque 7.2 Nm , 400V
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-SR
RATED CAPACITY (KW) 0,5
RATED TORQUE (NM) 2,4
MAXIMUM TORQUE (NM) 7,2
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 7,26
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 400
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 177,5
DEPTH (MM) 173,5
WEIGHT (KG) 4,8
ORDER CODES
EUROPEAN ORDER CODE 261431
GLOBAL ORDER CODE 0JE991-0010KA
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30222
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 4.998 KG
VOLUME 11.592 CDM
LENGTH 31,5 CM
WIDTH 16 CM
HEIGHT 23 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 192042
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
