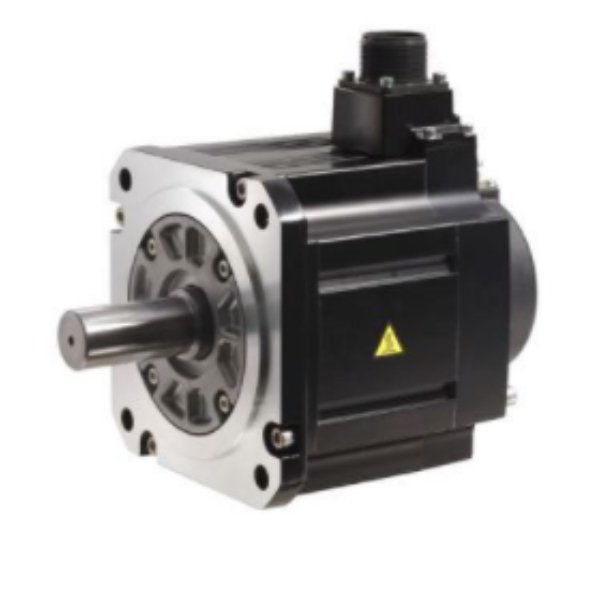

Type: HG-SR
Series: MELSERVO-J4
Serial Number: 248682
Product Details: Servomotor HG Series, Power 3.5 kW; Torque 16.7 Nm, Max. Torque 50 Nm, Brake
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-SR
RATED CAPACITY (KW) 3,5
RATED TORQUE (NM) 16,7
MAXIMUM TORQUE (NM) 50,1
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 88,2
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 228,9
DEPTH (MM) 291
WEIGHT (KG) 22
ORDER CODES
EUROPEAN ORDER CODE 248682
GLOBAL ORDER CODE 0JE055
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30222
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 21 KG
VOLUME 30.184 CDM
LENGTH 49 CM
WIDTH 28 CM
HEIGHT 22 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 161536 HF-SP352B
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
