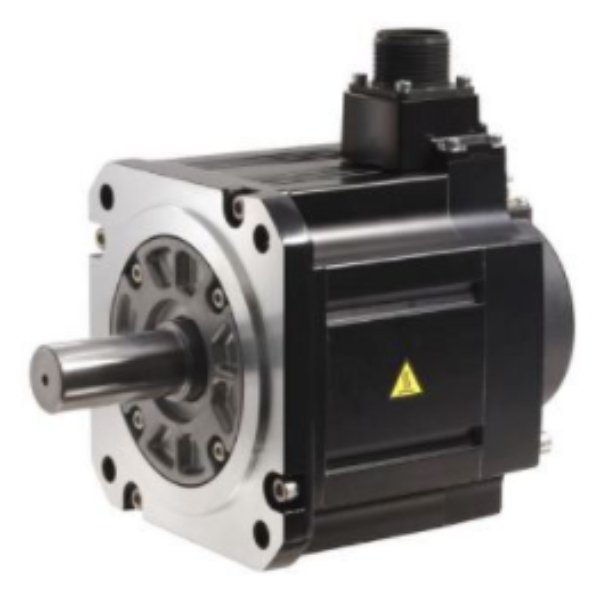

Type: HG-SR
Series: MELSERVO-J4
Serial Number: 248681
Product Details: Servomotor HG Series, Power 2 kW; Torque 9.5 Nm, Max. Torque 28.6 Nm, Brake
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-SR
RATED CAPACITY (KW) 2
RATED TORQUE (NM) 9,5
MAXIMUM TORQUE (NM) 28,6
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 56,5
BRAKE YES
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 228,9
DEPTH (MM) 267
WEIGHT (KG) 17
ORDER CODES
EUROPEAN ORDER CODE 248681
GLOBAL ORDER CODE 0JE054
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30222
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS B
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 16.812 KG
VOLUME 24.42 CDM
LENGTH 37 CM
WIDTH 22 CM
HEIGHT 30 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 161535
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
