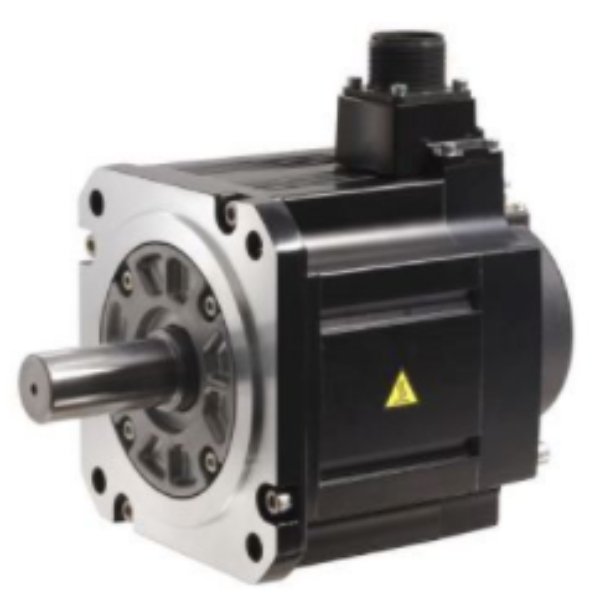

Type: HG-SR
Series: MELSERVO-J4
Serial Number: 261434
Product Details: Servomotor HG Series, Power 2 kW; Torque 9.5 Nm, Max. Torque 28.6 Nm , 400V
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-SR
RATED CAPACITY (KW) 2
RATED TORQUE (NM) 9,5
MAXIMUM TORQUE (NM) 28,6
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 46,8
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 400
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 228,9
DEPTH (MM) 217,5
WEIGHT (KG) 11
ORDER CODES
EUROPEAN ORDER CODE 261434
GLOBAL ORDER CODE 0JE991-0010KD
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30222
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 12.027 KG
VOLUME 25.696 CDM
LENGTH 36,5 CM
WIDTH 22 CM
HEIGHT 32 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 192055
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
