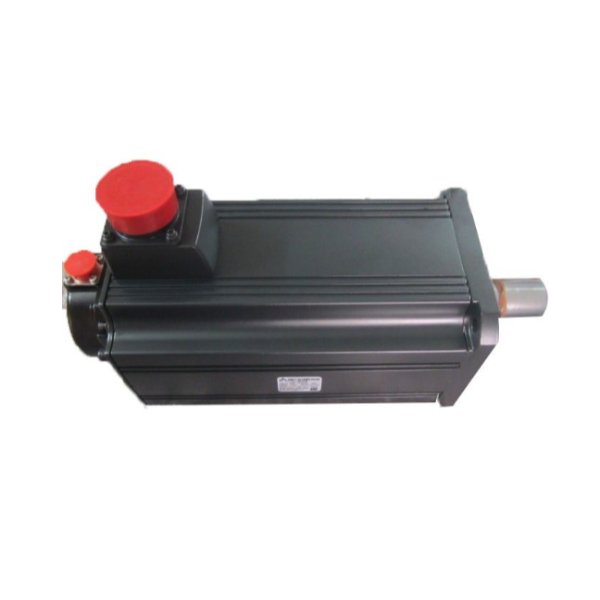

Type: HG-SNS
Series: MELSREVO-JE
Serial Number: 497873
Product Details: Servo motor; HG Series; Power 2 kW; Torque 9,55 Nm, max. 28,6 Nm; Keyway
SERVO MOTOR
SERIES MELSREVO-JE
TYPE HG-SNS
RATED CAPACITY (KW) 2
RATED TORQUE (NM) 9,55
MAXIMUM TORQUE (NM) 28,6
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 46,8
BRAKE NO
SHAFT TYPE KEYWAY
PROTECTION CLASS IP67
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE 22-BIT
ENCODER RESOLUTION (P/REV) 4194304
ADDITIONAL PRODUCT INFORMATION
DIFFERENCE TO STANDARD 1 KEYWAY SHAFT
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 176
HEIGHT (MM) 228,9
DEPTH (MM) 217,5
WEIGHT (KG) 11
ORDER CODES
EUROPEAN ORDER CODE 497873
GLOBAL ORDER CODE 0JS991-00002F
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30227
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.01 KG
VOLUME 0 CDM
LENGTH 0 CM
WIDTH 0 CM
HEIGHT 0 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
