Type: HG-SN
Series: MELSREVO-JE
Serial Number: 282643

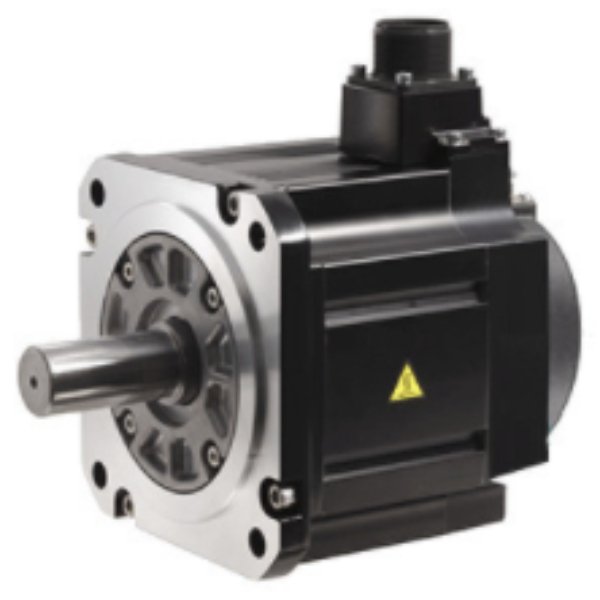

Product Details: Servomotor HG-SN, 1.5kW; Torque 7.2 Nm, max. torque 21.5 Nm, Key-way
SERVO MOTOR
SERIES MELSREVO-JE
TYPE HG-SN
RATED CAPACITY (KW) 1,5
RATED TORQUE (NM) 7,16
MAXIMUM TORQUE (NM) 21,5
RATED SPEED (RPM) 2000
MAXIMUM SPEED (RPM) 3000
INERTIA (KG*CM2) 16
BRAKE NO
SHAFT TYPE KEYWAY
PROTECTION CLASS IP67
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE INCREMENTAL
ENCODER RESOLUTION (P/REV) 131072
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 130
HEIGHT (MM) 177,5
DEPTH (MM) 201,5
WEIGHT (KG) 7,3
ORDER CODES
EUROPEAN ORDER CODE 282643
GLOBAL ORDER CODE 0JS103000
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30227
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 7.494 KG
VOLUME 12.474 CDM
LENGTH 31,5 CM
WIDTH 16,5 CM
HEIGHT 24 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 253954 HF-SN152JK
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
