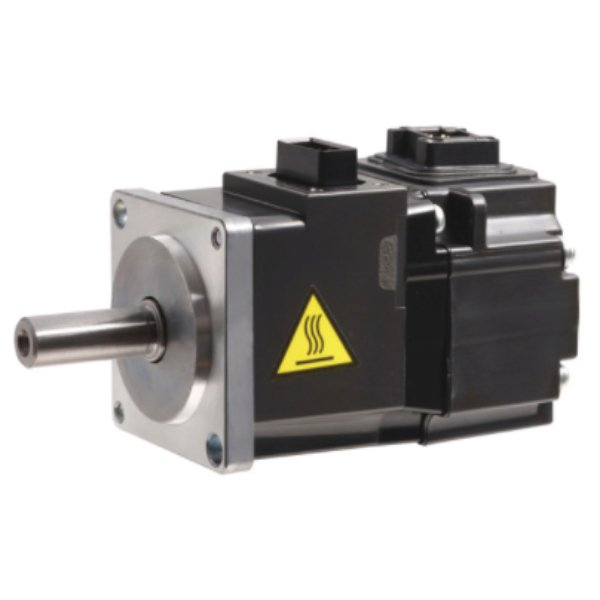

Type: HG-KR
Series: MELSERVO-J4
Serial Number: 248651
Product Details: Servomotor HG Series, Power 50 W; Torque 0.16 Nm, Max. Torque 0.56 Nm
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-KR
RATED CAPACITY (KW) 0,05
RATED TORQUE (NM) 0,16
MAXIMUM TORQUE (NM) 0,56
RATED SPEED (RPM) 3000
MAXIMUM SPEED (RPM) 6000
INERTIA (KG*CM2) 0,045
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP65
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 40
HEIGHT (MM) 41,7
DEPTH (MM) 66,4
WEIGHT (KG) 0,34
ORDER CODES
EUROPEAN ORDER CODE 248651
GLOBAL ORDER CODE 0JC001
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30220
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.4 KG
VOLUME 1.722 CDM
LENGTH 20,5 CM
WIDTH 10,5 CM
HEIGHT 8 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 161507
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
