Type: HG-KNS
Series: MELSERVO-JE
Serial Number: 493378
Product Details: Servo motor; HG Series; Power 200 W; Torque 0,64 Nm, max. 1,9 Nm; Brake; Keyway

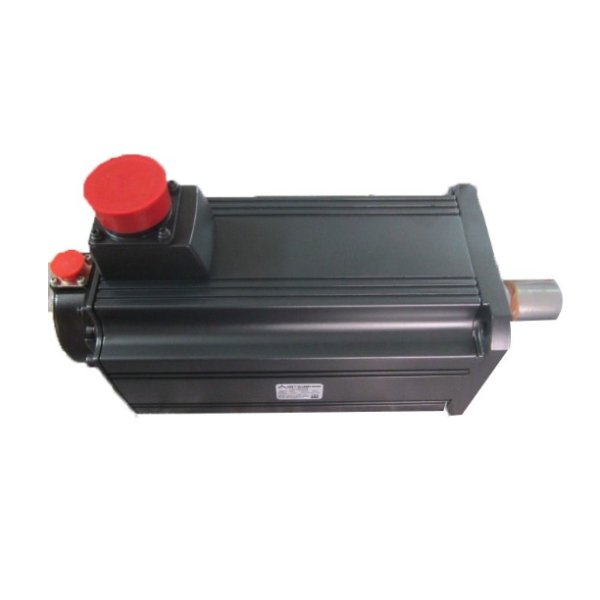

SERVO MOTOR
SERIES MELSERVO-JE
TYPE HG-KNS
RATED CAPACITY (KW) 0,2
RATED TORQUE (NM) 0,64
MAXIMUM TORQUE (NM) 1,9
RATED SPEED (RPM) 3000
MAXIMUM SPEED (RPM) 6000
INERTIA (KG*CM2) 0,247
BRAKE YES
SHAFT TYPE KEYWAY
PROTECTION CLASS IP65
POWER SUPPLY (V) 200
CURRENT TYPE AC
ENCODER TYPE 22-BIT
ENCODER RESOLUTION (P/REV) 4194304
ADDITIONAL PRODUCT INFORMATION
DIFFERENCE TO STANDARD 1 KEYWAY SHAFT
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 60
HEIGHT (MM) 77,1
DEPTH (MM) 143,4
WEIGHT (KG) 1,3
ORDER CODES
EUROPEAN ORDER CODE 493378
GLOBAL ORDER CODE 0JT991-00001Z
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30226
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS C
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 0.01 KG
VOLUME 0 CDM
LENGTH 0 CM
WIDTH 0 CM
HEIGHT 0 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015100
COUNTRY OF ORIGIN JP
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
DANGEROUS GOODS REGULATIONS NO
