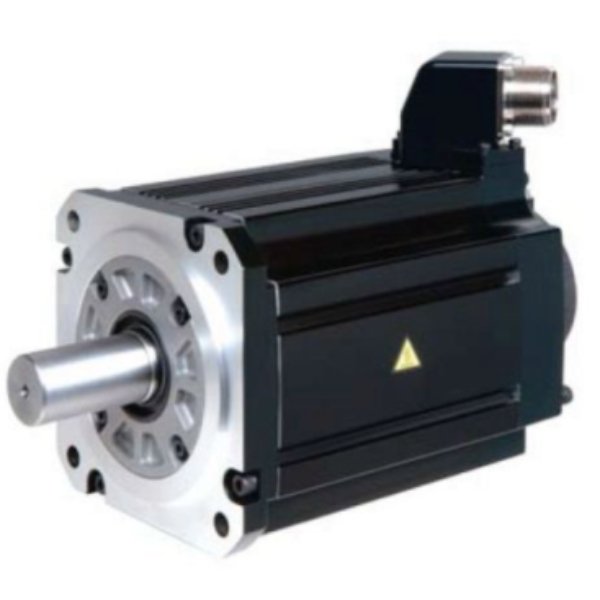

Type: HG-JR
Series: MELSERVO-J4
Serial Number: 261448
Product Details: Servomotor HG Series, Power 1,5 kW; Torque 4.77 Nm, Max. Torque 14.3 Nm , 400V
SERVO MOTOR
SERIES MELSERVO-J4
TYPE HG-JR
RATED CAPACITY (KW) 1,5
RATED TORQUE (NM) 4,8
MAXIMUM TORQUE (NM) 14,3
RATED SPEED (RPM) 3000
MAXIMUM SPEED (RPM) 6000
INERTIA (KG*CM2) 3,79
BRAKE NO
SHAFT TYPE STRAIGHT SHAFT
PROTECTION CLASS IP67
POWER SUPPLY (V) 400
CURRENT TYPE AC
ENCODER TYPE ABSOLUTE/INCREMENTAL
ENCODER RESOLUTION (P/REV) 4194304
PRODUCT DIMENSIONS & WEIGHT
WIDTH (MM) 90
HEIGHT (MM) 138,8
DEPTH (MM) 239,5
WEIGHT (KG) 5,9
ORDER CODES
EUROPEAN ORDER CODE 261448
GLOBAL ORDER CODE 0JF014
CLASSIFICATION DATA
PRODUCT HIERARCHY IAK30223
CLASS DESCRIPTION FA-Servo-Motion: Servo Motor
EXTERNAL MATERIAL GROUP Standard Material
AVAILABILITY
LOGISTIC CLASS A
PACKAGING DIMENSIONS & WEIGHT
GROSS WEIGHT 6.78 KG
VOLUME 16.825 CDM
LENGTH 38,5 CM
WIDTH 19 CM
HEIGHT 23 CM
COMMODITY / IMPORT CODE
COMMODITY CODE 85015220
COUNTRY OF ORIGIN JP
LIFE CYCLE
PREDECESSOR 227018
CAMPAIGNS
SELLING STATUS Standard
ENVIRONMENTAL
ROHS COMPLIANCE COMPLIANT
REACH LIMIT EXCEEDED NO
DANGEROUS GOODS REGULATIONS NO
